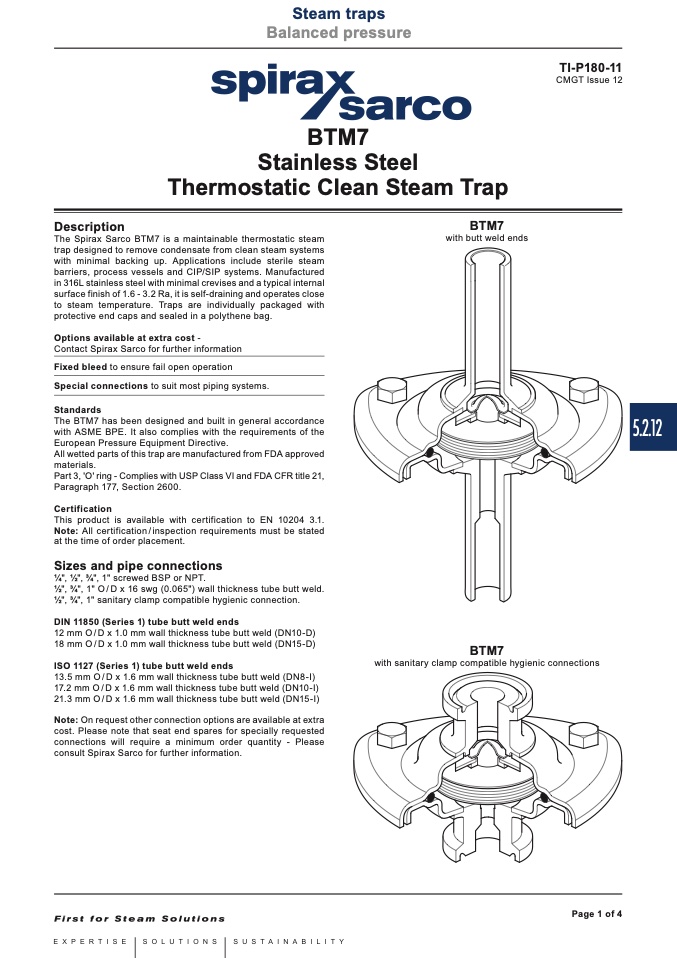

Thermostatic Clean Steam Trap

Description

The Spirax Sarco BTM7 is a maintainable thermostatic steam

trap designed to remove condensate from clean steam systems

with minimal backing up. Applications include sterile steam

barriers, process vessels and CIP/SIP systems. Manufactured

in 316L stainless steel with minimal crevises and a typical internal

surface finish of 1.6 - 3.2 Ra, it is self-draining and operates close

to steam temperature. Traps are individually packaged with

protective end caps and sealed in a polythene bag.

Options available at extra cost -

Contact Spirax Sarco for further information

Fixed bleed to ensure fail open operation

Special connections to suit most piping systems.

Standards

The BTM7 has been designed and built in general accordance

with ASME BPE. It also complies with the requirements of the

European Pressure Equipment Directive.

All wetted parts of this trap are manufactured from FDA approved

materials.

Part 3, 'O' ring - Complies with USP Class VI and FDA CFR title 21,

Paragraph 177, Section 2600.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

1⁄4", 1⁄2", 3⁄4", 1" screwed BSP or NPT.

1⁄2", 3⁄4", 1" O/D x 16 swg (0.065") wall thickness tube butt weld.

1⁄2", 3⁄4", 1" sanitary clamp compatible hygienic connection.

DIN 11850 (Series 1) tube butt weld ends

12 mm O/D x 1.0 mm wall thickness tube butt weld (DN10-D)

18 mm O/D x 1.0 mm wall thickness tube butt weld (DN15-D)

ISO 1127 (Series 1) tube butt weld ends

13.5 mm O/D x 1.6 mm wall thickness tube butt weld (DN8-I)

17.2 mm O/D x 1.6 mm wall thickness tube butt weld (DN10-I)

21.3 mm O/D x 1.6 mm wall thickness tube butt weld (DN15-I)

Note: On request other connection options are available at extra

cost. Please note that seat end spares for specially requested

connections will require a minimum order quantity - Please

consult Spirax Sarco for further information.

BTM7

with butt weld ends

BTM7

with sanitary clamp compatible hygienic connections
