Steam traps

Balanced pressure

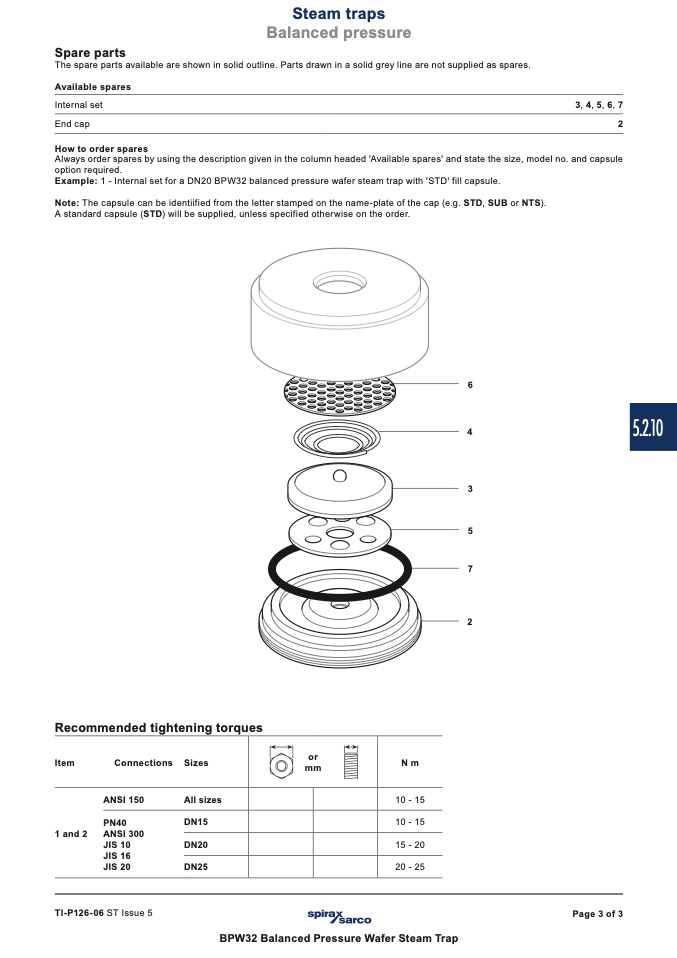

Spare parts

The spare parts available are shown in solid outline. Parts drawn in a solid grey line are not supplied as spares.

Available spares

Internal set

End cap

How to order spares

3, 4, 5, 6, 7

2

Always order spares by using the description given in the column headed 'Available spares' and state the size, model no. and capsule

option required.

Example: 1 - Internal set for a DN20 BPW32 balanced pressure wafer steam trap with 'STD' fill capsule.

Note: The capsule can be identiified from the letter stamped on the name-plate of the cap (e.g. STD, SUB or NTS).

A standard capsule (STD) will be supplied, unless specified otherwise on the order.

6

4

3

5

7

2

Recommended tightening torques

5.2.10

or

mm

Item

1 and 2

Connections

ANSI 150

PN40

ANSI 300

JIS 10

JIS 16

JIS 20

Sizes

All sizes

DN15

DN20

DN25

N m

10 - 15

10 - 15

15 - 20

20 - 25

TI-P126-06 ST Issue 5

Page 3 of 3

BPW32 Balanced Pressure Wafer Steam Trap
