Description

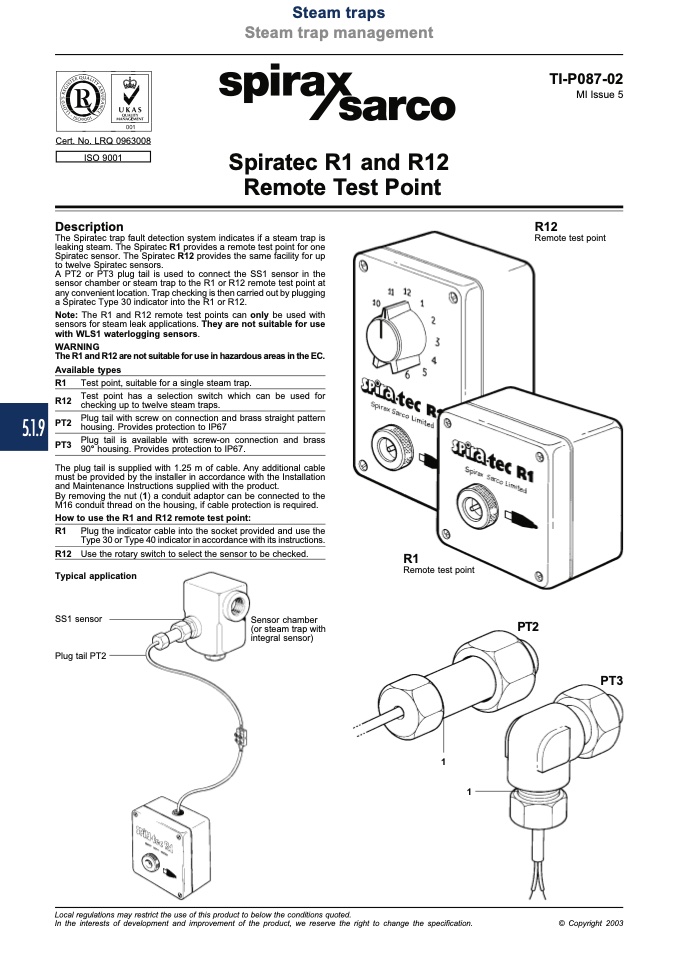

Spiratec R1 and R12

Remote Test Point

TI-P087-02

MI Issue 5

R12

Remote test point

The Spiratec trap fault detection system indicates if a steam trap is

leaking steam. The Spiratec R1 provides a remote test point for one

Spiratec sensor. The Spiratec R12 provides the same facility for up

to twelve Spiratec sensors.

A PT2 or PT3 plug tail is used to connect the SS1 sensor in the

sensor chamber or steam trap to the R1 or R12 remote test point at

any convenient location. Trap checking is then carried out by plugging

a Spiratec Type 30 indicator into the R1 or R12.

Note: The R1 and R12 remote test points can only be used with

sensors for steam leak applications. They are not suitable for use

with WLS1 waterlogging sensors.

WARNING

The R1 and R12 are not suitable for use in hazardous areas in the EC.

Available types

R1 Test point, suitable for a single steam trap.

R12

Test point has a selection switch which can be used for

checking up to twelve steam traps.

PT2

Plug tail with screw on connection and brass straight pattern

housing. Provides protection to IP67

PT3

Plug tail is available with screw-on connection and brass

90° housing. Provides protection to IP67.

The plug tail is supplied with 1.25 m of cable. Any additional cable

must be provided by the installer in accordance with the Installation

and Maintenance Instructions supplied with the product.

By removing the nut (1) a conduit adaptor can be connected to the

M16 conduit thread on the housing, if cable protection is required.

How to use the R1 and R12 remote test point:

R1 Plug the indicator cable into the socket provided and use the

Type 30 or Type 40 indicator in accordance with its instructions.

R12 Use the rotary switch to select the sensor to be checked.

R1

Remote test point

Typical application

SS1 sensor

Plug tail PT2

Sensor chamber

(or steam trap with

integral sensor)

PT2

PT3

1

1

Local regulations may restrict the use of this product to below the conditions quoted.
