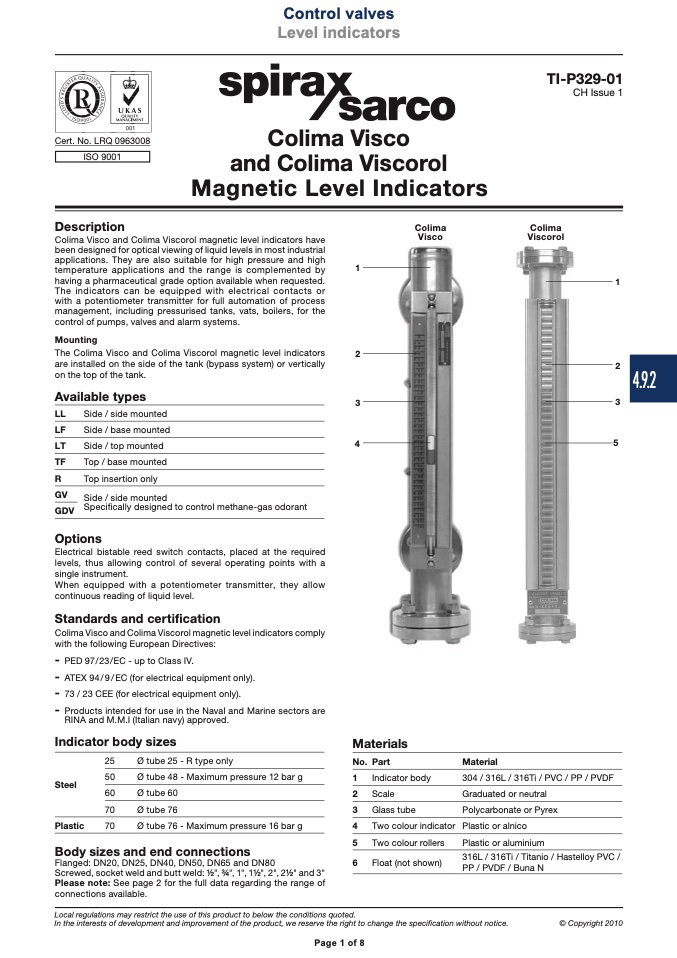

Description
Colima Visco and Colima Viscorol magnetic level indicators have
been designed for optical viewing of liquid levels in most industrial
applications. They are also suitable for high pressure and high
temperature applications and the range is complemented by
having a pharmaceutical grade option available when requested.
The indicators can be equipped with electrical contacts or
with a potentiometer transmitter for full automation of process
management, including pressurised tanks, vats, boilers, for the
control of pumps, valves and alarm systems.
Mounting
The Colima Visco and Colima Viscorol magnetic level indicators
are installed on the side of the tank (bypass system) or vertically
on the top of the tank.
Available types
LL
Side / side mounted
LF
Side / base mounted
LT
Side / top mounted
TF
Top / base mounted
R
Top insertion only
Colima
Colima
Visco
Viscorol
Colima Visco
and Colima Viscorol
Magnetic Level Indicators
1
2
1
2
3
3
4
5
GV
GDV
Specifically designed to control methane-gas odorant
Options
Electrical bistable reed switch contacts, placed at the required
levels, thus allowing control of several operating points with a
single instrument.
When equipped with a potentiometer transmitter, they allow
continuous reading of liquid level.
Standards and certification
Colima Visco and Colima Viscorol magnetic level indicators comply
with the following European Directives:
- PED 97/23/EC - up to Class IV.
- ATEX 94/9/EC (for electrical equipment only).
- 73 / 23 CEE (for electrical equipment only).
- Products intended for use in the Naval and Marine sectors are
RINA and M.M.I (Italian navy) approved.
Indicator body sizes
Side / side mounted
Steel
25
Ø tube 25 - R type only
50
Ø tube 48 - Maximum pressure 12 bar g
60
Ø tube 60
70
Ø tube 76
Materials
No. Part
1
Indicator body
2
Scale
3
Glass tube
4
Two colour indicator
5
Two colour rollers
6
Float (not shown)
Material
304 / 316L / 316Ti / PVC / PP / PVDF
Graduated or neutral
Polycarbonate or Pyrex
Plastic or alnico
Plastic or aluminium
316L / 316Ti / Titanio / Hastelloy PVC /
PP / PVDF / Buna N
ISO 9001
Plastic
70
Ø tube 76 - Maximum pressure 16 bar g
Body sizes and end connections
Flanged: DN20, DN25, DN40, DN50, DN65 and DN80
Screwed, socket weld and butt weld: 1⁄2", 3⁄4", 1", 11⁄2", 2", 21⁄2" and 3"
Please note: See page 2 for the full data regarding the range of
connections available.
