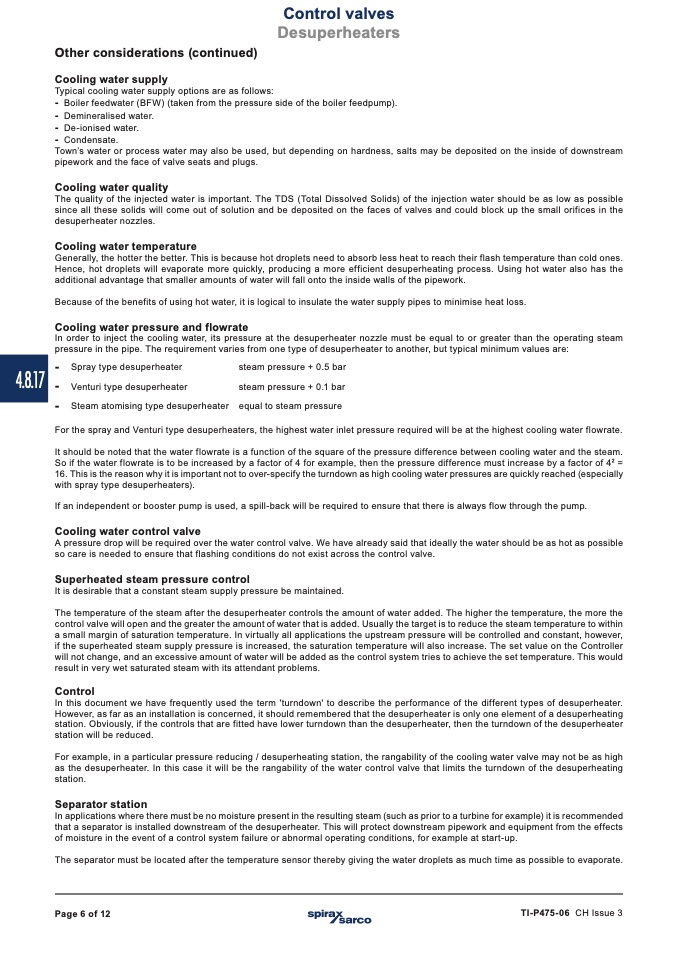

Typical cooling water supply options are as follows:
Town’s water or process water may also be used, but depending on hardness, salts may be deposited on the inside of downstream
pipework and the face of valve seats and plugs.
The quality of the injected water is important. The TDS (Total Dissolved Solids) of the injection water should be as low as possible
since all these solids will come out of solution and be deposited on the faces of valves and could block up the small orifices in the
desuperheater nozzles.
Generally, the hotter the better. This is because hot droplets need to absorb less heat to reach their flash temperature than cold ones.
Hence, hot droplets will evaporate more quickly, producing a more efficient desuperheating process. Using hot water also has the
additional advantage that smaller amounts of water will fall onto the inside walls of the pipework.
Because of the benefits of using hot water, it is logical to insulate the water supply pipes to minimise heat loss.
In order to inject the cooling water, its pressure at the desuperheater nozzle must be equal to or greater than the operating steam
pressure in the pipe. The requirement varies from one type of desuperheater to another, but typical minimum values are:
Spray type desuperheater
Venturi type desuperheater
Steam atomising type desuperheater
steam pressure + 0.5 bar
steam pressure + 0.1 bar
equal to steam pressure
For the spray and Venturi type desuperheaters, the highest water inlet pressure required will be at the highest cooling water flowrate.
It should be noted that the water flowrate is a function of the square of the pressure difference between cooling water and the steam.
So if the water flowrate is to be increased by a factor of 4 for example, then the pressure difference must increase by a factor of 4
2
=
16. This is the reason why it is important not to over-specify the turndown as high cooling water pressures are quickly reached (especially
with spray type desuperheaters).
If an independent or booster pump is used, a spill-back will be required to ensure that there is always flow through the pump.
A pressure drop will be required over the water control valve. We have already said that ideally the water should be as hot as possible
so care is needed to ensure that flashing conditions do not exist across the control valve.
It is desirable that a constant steam supply pressure be maintained.
The temperature of the steam after the desuperheater controls the amount of water added. The higher the temperature, the more the
control valve will open and the greater the amount of water that is added. Usually the target is to reduce the steam temperature to within
a small margin of saturation temperature. In virtually all applications the upstream pressure will be controlled and constant, however,
if the superheated steam supply pressure is increased, the saturation temperature will also increase. The set value on the Controller
will not change, and an excessive amount of water will be added as the control system tries to achieve the set temperature. This would
result in very wet saturated steam with its attendant problems.
In this document we have frequently used the term 'turndown' to describe the performance of the different types of desuperheater.
However, as far as an installation is concerned, it should remembered that the desuperheater is only one element of a desuperheating
station. Obviously, if the controls that are fitted have lower turndown than the desuperheater, then the turndown of the desuperheater
station will be reduced.
For example, in a particular pressure reducing / desuperheating station, the rangability of the cooling water valve may not be as high
as the desuperheater. In this case it will be the rangability of the water control valve that limits the turndown of the desuperheating
station.
In applications where there must be no moisture present in the resulting steam (such as prior to a turbine for example) it is recommended
that a separator is installed downstream of the desuperheater. This will protect downstream pipework and equipment from the effects
of moisture in the event of a control system failure or abnormal operating conditions, for example at start-up.
The separator must be located after the temperature sensor thereby giving the water droplets as much time as possible to evaporate.
