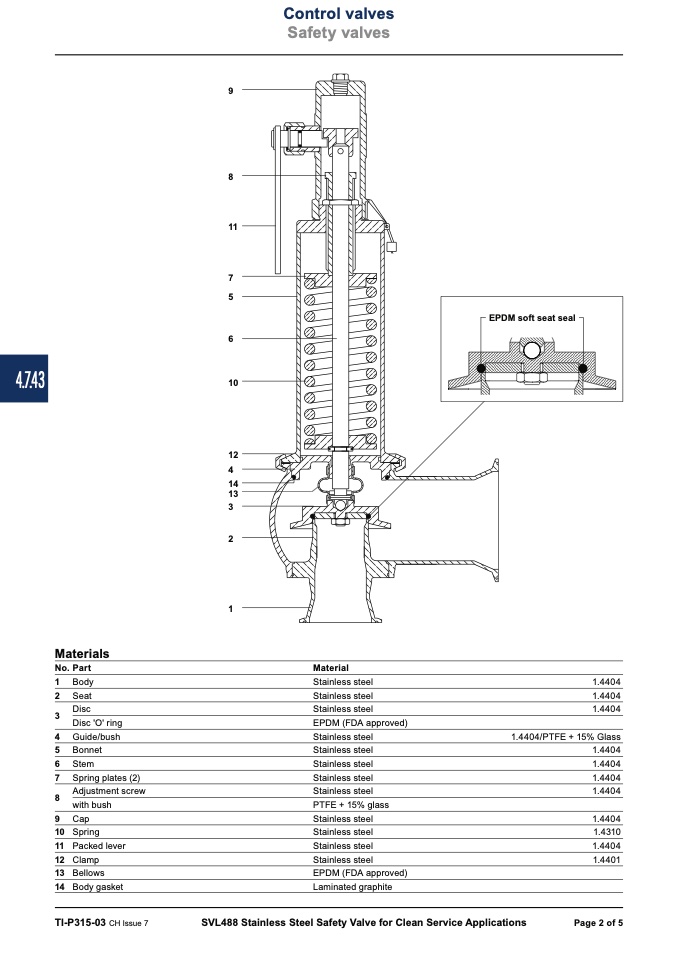

Materials

No. Part

1 Body

2 Seat

Disc

Disc 'O' ring

4 Guide/bush

Material

Stainless steel

Stainless steel

Stainless steel

EPDM (FDA approved)

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

PTFE + 15% glass

Stainless steel

Stainless steel

Stainless steel

Stainless steel

EPDM (FDA approved)

Laminated graphite

1.4404

1.4404

1.4404

3

5 Bonnet

6 Stem

7 Spring plates (2)

1.4404/PTFE + 15% Glass

1.4404

1.4404

1.4404

1.4404

1.4404

1.4310

1.4404

1.4401

8

9 Cap

Adjustment screw

with bush

10 Spring

11 Packed lever

12 Clamp

13 Bellows

14 Body gasket

TI-P315-03 CH Issue 7

SVL488 Stainless Steel Safety Valve for Clean Service Applications
