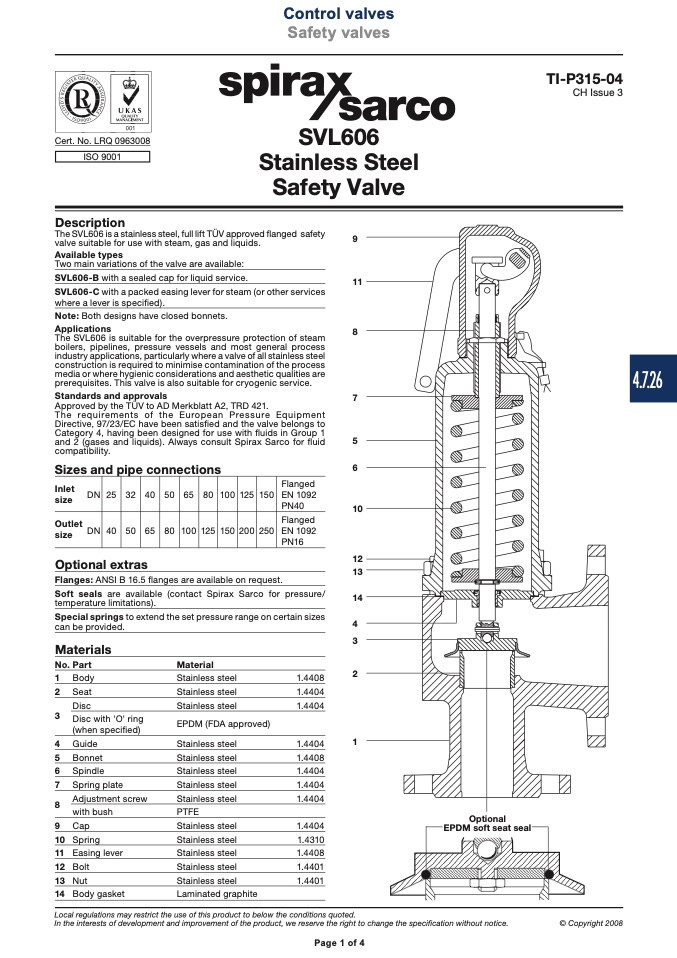

Description

The SVL606 is a stainless steel, full lift TÜV approved flanged safety

valve suitable for use with steam, gas and liquids.

Available types

Two main variations of the valve are available:

SVL606-B with a sealed cap for liquid service.

9

11

SVL606-C with a packed easing lever for steam (or other services

where a lever is specified).

Note: Both designs have closed bonnets.

Applications

8

7

The SVL606 is suitable for the overpressure protection of steam

boilers, pipelines, pressure vessels and most general process

industry applications, particularly where a valve of all stainless steel

construction is required to minimise contamination of the process

media or where hygienic considerations and aesthetic qualities are

prerequisites. This valve is also suitable for cryogenic service.

4.7.26

Standards and approvals

Approved by the TÜV to AD Merkblatt A2, TRD 421.

The requirements of the European Pressure Equipment

Directive, 97/23/EC have been satisfied and the valve belongs to

Category 4, having been designed for use with

fluids in Group 1

and 2 (gases and liquids). Always consult Spirax Sarco for fluid

5

compatibility.

Sizes and pipe connections

6

10

12

13

14

4

3

2

1

Inlet

size

Flanged

EN 1092

PN40

Flanged

EN 1092

PN16

DN 25 32 40 50 65 80 100125150

size

DN 40 50 65 80 100125150200250

Outlet

Optional extras

Flanges: ANSI B 16.5 flanges are available on request.

Soft seals are available (contact Spirax Sarco for pressure/

temperature limitations).

Special springs to extend the set pressure range on certain sizes

can be provided.

Materials

No. Part

1 Body

2 Seat

Disc

Disc with 'O' ring

(when specified)

Material

Stainless steel

1.4408

Stainless steel

1.4404

Stainless steel

1.4404

3

EPDM (FDA approved)

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

PTFE

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Laminated graphite

4 Guide

5 Bonnet

6 Spindle

7 Spring plate

8

Adjustment screw

with bush

9 Cap

10 Spring

11 Easing lever

12 Bolt

13 Nut

14 Body gasket

1.4404

1.4408

1.4404

1.4404

1.4404

1.4404

1.4310

1.4408

1.4401

1.4401

Optional

EPDM soft seat seal

Control valves

Safety valves

SVL606

Stainless Steel

Safety Valve

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
