Control valves

Safety valves

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2013

TI-S13-27

CH Issue 13

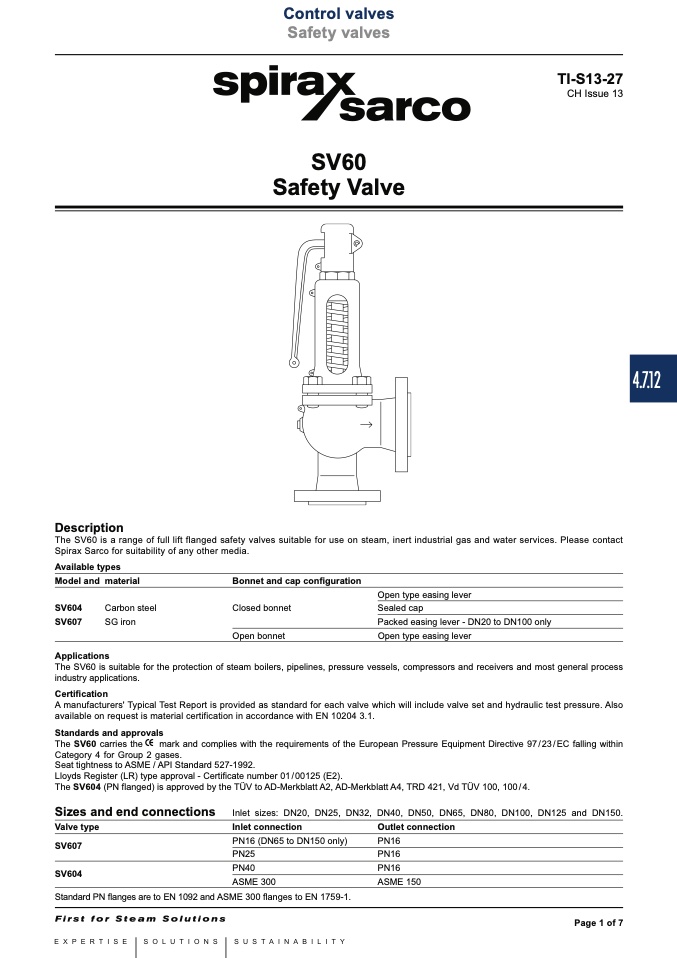

SV60

Safety Valve

Description

The SV60 is a range of full lift flanged safety valves suitable for use on steam, inert industrial gas and water services. Please contact

Spirax Sarco for suitability of any other media.

Available types

Model and material

SV604

Carbon steel

SV607

SG iron

Applications

Bonnet and cap configuration

Closed bonnet

Open bonnet

Open type easing lever

Sealed cap

Packed easing lever - DN20 to DN100 only

Open type easing lever

The SV60 is suitable for the protection of steam boilers, pipelines, pressure vessels, compressors and receivers and most general process

industry applications.

Certification

A manufacturers' Typical Test Report is provided as standard for each valve which will include valve set and hydraulic test pressure. Also

available on request is material certification in accordance with EN 10204 3.1.

Standards and approvals

The SV60 carries the

mark and complies with the requirements of the European Pressure Equipment Directive 97/23/EC falling within

Category 4 for Group 2 gases.

Seat tightness to ASME / API Standard 527-1992.

Lloyds Register (LR) type approval - Certificate number 01/00125 (E2).

The SV604 (PN flanged) is approved by the TÜV to AD-Merkblatt A2, AD-Merkblatt A4, TRD 421, Vd TÜV 100, 100 / 4.

Sizes and end connections

Valve type

SV607

SV604

Inlet sizes: DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125 and DN150.

Inlet connection

PN16 (DN65 to DN150 only)

PN25

PN40

ASME 300

Outlet connection

PN16

PN16

PN16

ASME 150

Standard PN flanges are to EN 1092 and ASME 300 flanges to EN 1759-1.

Page 1 of 7

4.7.12
