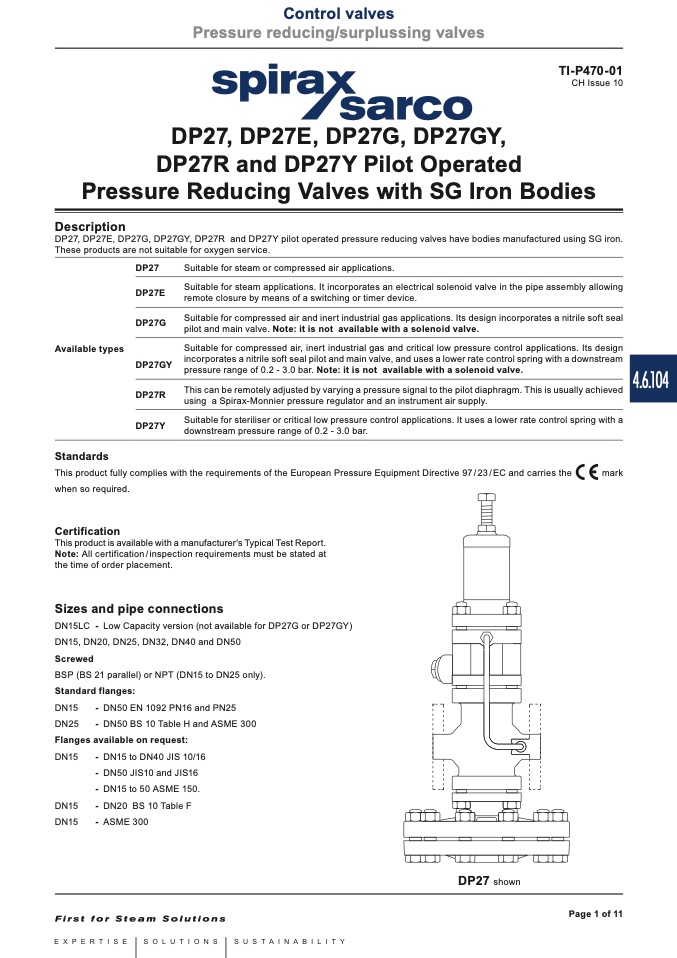

Control valves

Local regulations may restrict the use of this product to below the conditions quoted.

Pressure reducing/surplussing valves

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-P470-01

CH Issue 10

DP27, DP27E, DP27G, DP27GY,

DP27R and DP27Y Pilot Operated

Pressure Reducing Valves with SG Iron Bodies

Description

DP27, DP27E, DP27G, DP27GY, DP27R and DP27Y pilot operated pressure reducing valves have bodies manufactured using SG iron.

These products are not suitable for oxygen service.

DP27

Suitable for steam or compressed air applications.

Suitable for steam applications. It incorporates an electrical solenoid valve in the pipe assembly allowing

remote closure by means of a switching or timer device.

Suitable for compressed air and inert industrial gas applications. Its design incorporates a nitrile soft seal

pilot and main valve. Note: it is not available with a solenoid valve.

Suitable for compressed air, inert industrial gas and critical low pressure control applications. Its design

incorporates a nitrile soft seal pilot and main valve, and uses a lower rate control spring with a downstream

pressure range of 0.2 - 3.0 bar. Note: it is not available with a solenoid valve.

This can be remotely adjusted by varying a pressure signal to the pilot diaphragm. This is usually achieved

using a Spirax-Monnier pressure regulator and an instrument air supply.

Suitable for steriliser or critical low pressure control applications. It uses a lower rate control spring with a

downstream pressure range of 0.2 - 3.0 bar.

Available types

Standards

DP27E

DP27G

DP27GY

DP27R

DP27Y

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

mark

when so required.

Certification

This product is available with a manufacturer's Typical Test Report.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

DN15LC - Low Capacity version (not available for DP27G or DP27GY)

DN15, DN20, DN25, DN32, DN40 and DN50

Screwed

BSP (BS 21 parallel) or NPT (DN15 to DN25 only).

Standard flanges:

DN15

- DN50 EN 1092 PN16 and PN25

DN25

- DN50 BS 10 Table H and ASME 300

Flanges available on request:

DN15

- DN15 to DN40 JIS 10/16

- DN50 JIS10 and JIS16

- DN15 to 50 ASME 150.

DN15

-DN20BS10TableF

DN15

- ASME 300

DP27

shown

Page 1 of 11

4.6.104
