136.8 mm

Boiler house

Level controls

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

F

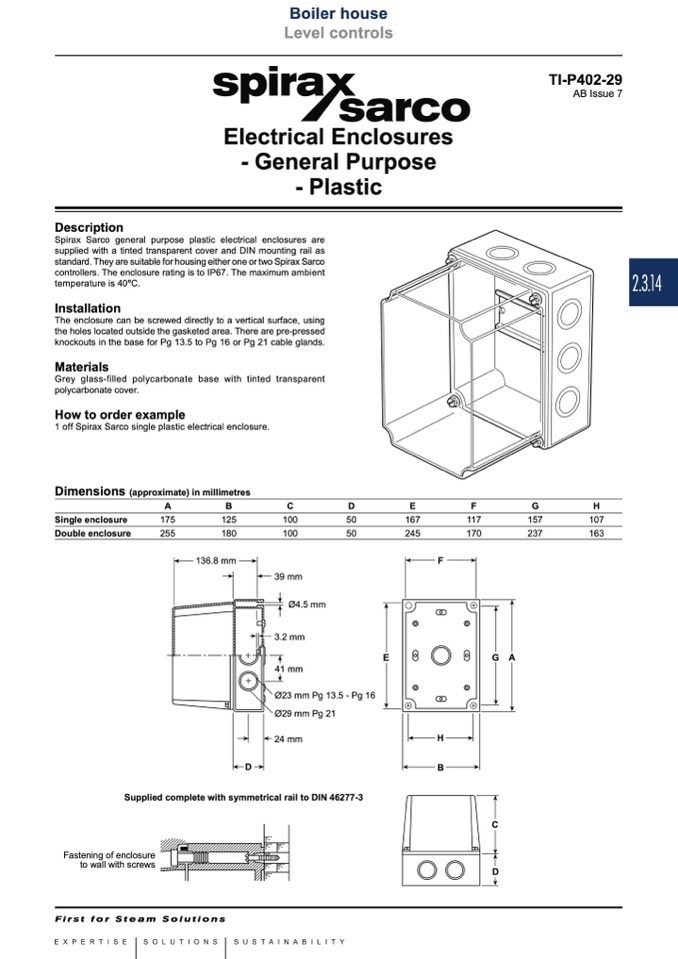

TI-P402-29

AB Issue 7

Electrical Enclosures

- General Purpose

- Plastic

Description

Spirax Sarco general purpose plastic electrical enclosures are

supplied with a tinted transparent cover and DIN mounting rail as

standard. They are suitable for housing either one or two Spirax Sarco

controllers. The enclosure rating is to IP67. The maximum ambient

temperature is 40°C.

Installation

The enclosure can be screwed directly to a vertical surface, using

the holes located outside the gasketed area. There are pre-pressed

knockouts in the base for Pg 13.5 to Pg 16 or Pg 21 cable glands.

Materials

Grey glass-filled polycarbonate base with tinted transparent

polycarbonate cover.

How to order example

1 off Spirax Sarco single plastic electrical enclosure.

Dimensions (approximate) in millimetres

A

B

C

D

E

F

G

H

Single enclosure

Double enclosure

175

125

255

180

100

50

167

100

50

245

39 mm

Ø4.5 mm

3.2 mm

mm

Ø23 mm Pg 13.5 - Pg 16

Ø29 mm Pg 21

24 mm

117

157

107

170

237

163

E

G

A

4 1

H

B

D

Supplied complete with symmetrical rail to DIN 46277-3

Fastening of enclosure

to wall with screws

C

D

2.3.14
