Upstream pressure bar

��

DN15LC

DN15

DN20

DN25

DN32

DN40

DN50

��

DN80

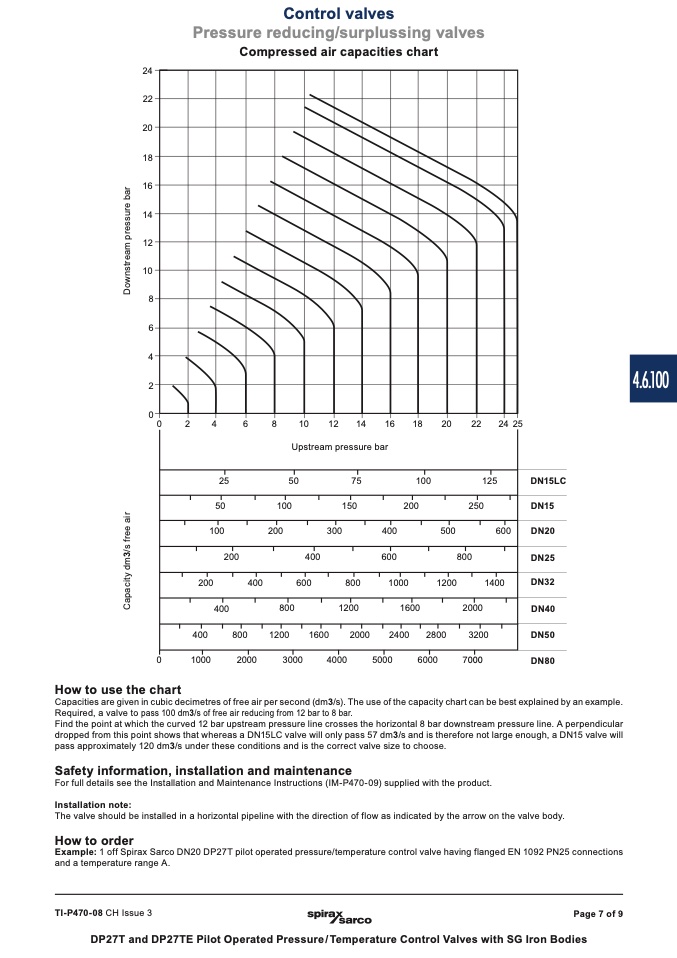

Capacities are given in cubic decimetres of free air per second (dm3/s). The use of the capacity chart can be best explained by an example.

Required, a valve to pass 100 dm3/s of free air reducing from 12 bar to 8 bar.

Find the point at which the curved 12 bar upstream pressure line crosses the horizontal 8 bar downstream pressure line. A perpendicular

dropped from this point shows that whereas a DN15LC valve will only pass 57 dm3/s and is therefore not large enough, a DN15 valve will

pass approximately 120 dm3/s under these conditions and is the correct valve size to choose.

For full details see the Installation and Maintenance Instructions (IM-P470-09) supplied with the product.

Installation note:

The valve should be installed in a horizontal pipeline with the direction of flow as indicated by the arrow on the valve body.

Example: 1 off Spirax Sarco DN20 DP27T pilot operated pressure/temperature control valve having flanged EN 1092 PN25 connections

and a temperature range A.

TI-P470-08 CH Issue 3

Page 7 of 9
