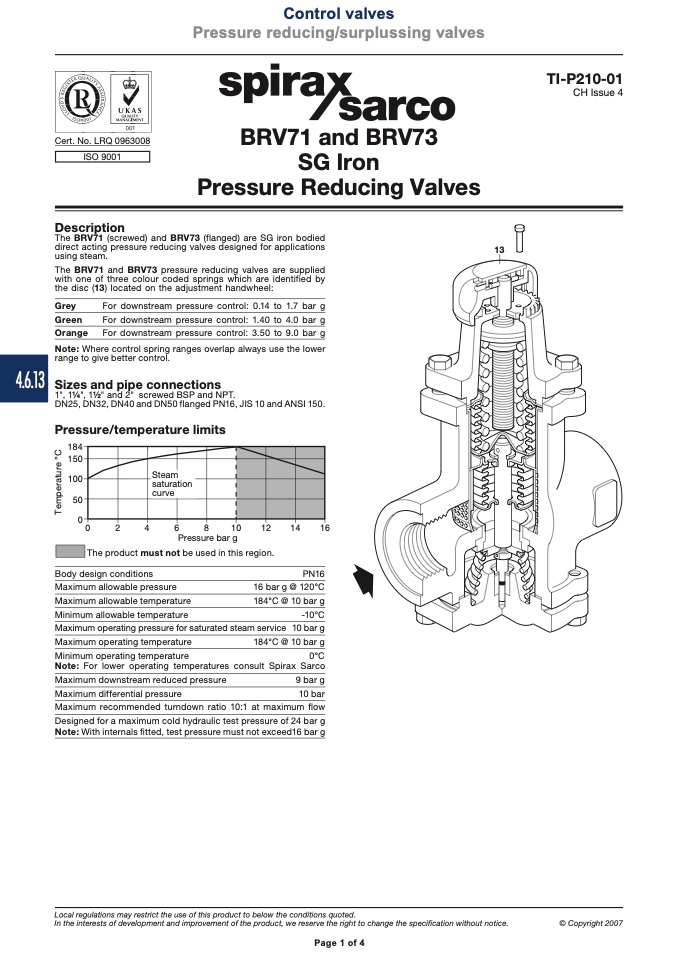

Description

The BRV71 (screwed) and BRV73 (flanged) are SG iron bodied

direct acting pressure reducing valves designed for applications

using steam.

The BRV71 and BRV73 pressure reducing valves are supplied

with one of three colour coded springs which are identified by

the disc (13) located on the adjustment handwheel:

Grey

For downstream pressure control: 0.14 to 1.7 bar g

Green

For downstream pressure control: 1.40 to 4.0 bar g

Orange

For downstream pressure control: 3.50 to 9.0 bar g

Note: Where control spring ranges overlap always use the lower

range to give better control.

4.6.13 Sizes and pipe connections

1", 11⁄4", 11⁄2" and 2" screwed BSP and NPT.

DN25, DN32, DN40 and DN50 flanged PN16, JIS 10 and ANSI 150.

Pressure/temperature limits

��

�

Steam

saturation

curve

Control valves

Pressure reducing/surplussing valves

BRV71 and BRV73

SG Iron

Pressure Reducing Valves

�

��

Pressure bar g

The product must not be used in this region.

Body design conditions

Maximum allowable pressure

Maximum allowable temperature

Minimum allowable temperature

PN16

16 bar g @ 120°C

184°C @ 10 bar g

-10°C

Maximumoperatingpressureforsaturatedsteamservice 10barg

Maximum operating temperature

184°C @ 10 bar g

Minimum operating temperature

0°C

Note: For lower operating temperatures consult Spirax Sarco

Maximum downstream reduced pressure

9 bar g

Maximum differential pressure

10 bar

Maximum recommended turndown ratio 10:1 at maximum flow

Designed for a maximum cold hydraulic test pressure of 24 bar g

Note: With internals fitted, test pressure must not exceed16 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Page 1 of 4

TI-P210-01

CH Issue 4
