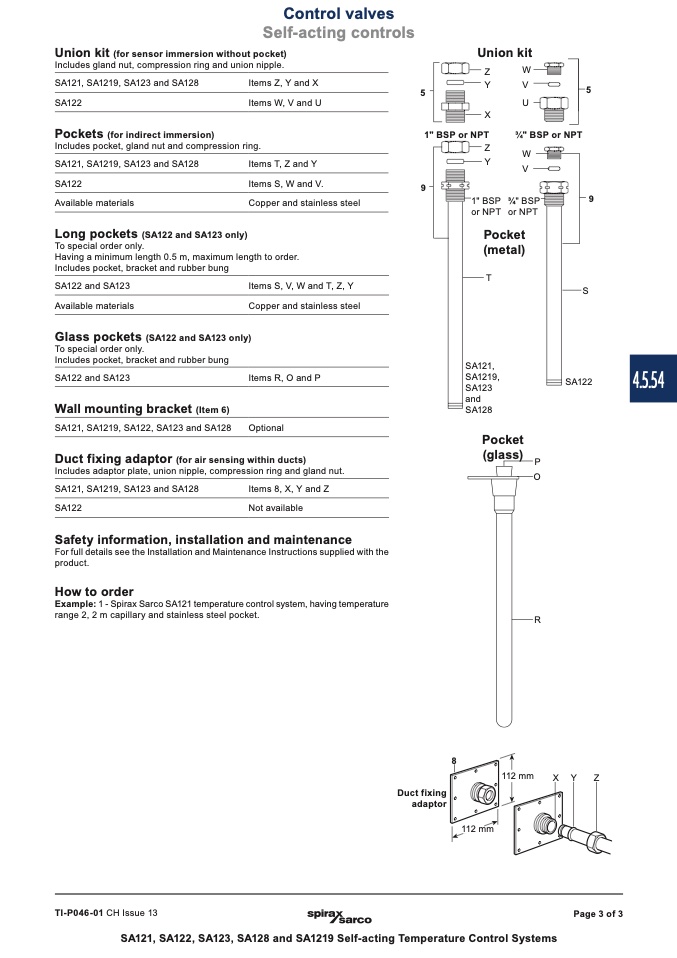

Control valves
Self-acting controls
Union kit (for sensor immersion without pocket)
Includes gland nut, compression ring and union nipple.
Union kit
SA121, SA1219, SA123 and SA128
SA122
Pockets (for indirect immersion)
Items Z, Y and X
Items W, V and U
Z
Y
5
1" BSP or NPT
W
V
U
3⁄4" BSP or NPT
5
9
S
SA122
(glass)
P
Includes pocket, gland nut and compression ring.
X
Z
Y
1" BSP
or NPT
W
V
3⁄4" BSP
or NPT
SA121, SA1219, SA123 and SA128
SA122
Available materials
Long pockets (SA122 and SA123 only)
Items T, Z and Y
Items S, W and V.
Copper and stainless steel
9
To special order only.
Having a minimum length 0.5 m, maximum length to order.
Includes pocket, bracket and rubber bung
SA122 and SA123
Items S, V, W and T, Z, Y
Available materials
Copper and stainless steel
Glass pockets (SA122 and SA123 only)
(metal)
T
SA121,
SA1219,
SA123
and
SA128
To special order only.
Includes pocket, bracket and rubber bung
SA122 and SA123
Wall mounting bracket (Item 6)
SA121, SA1219, SA122, SA123 and SA128
Items R, O and P
Optional
Duct fixing adaptor (for air sensing within ducts)
Includes adaptor plate, union nipple, compression ring and gland nut.
SA121, SA1219, SA123 and SA128
Items 8, X, Y and Z
SA122
Not available
Safety information, installation and maintenance
O
R
For full details see the Installation and Maintenance Instructions supplied with the
product.
How to order
Example: 1 - Spirax Sarco SA121 temperature control system, having temperature
range 2, 2 m capillary and stainless steel pocket.
8
Duct fixing
adaptor
112 mm
112mm
X Y
Z
