Set point adjustment at valve
SA122
For use on
2-port valves
3-port valves
Remote set point adjustment
1
SA123
For use on
Optional extras
Union kit
2-port valves
3-port valves
Direct immersion
Indirect immersion
1
3
Pocket material options include copper and stainless steel.
A glass option is also available for the SA122 and SA123 only.
3
2
Wall bracket
Duct adaptor
Nickel plating
Dial type set point adjuster
Pt100 temperature sensor
Materials
No. Part
1 Sensor
2 Actuator
3 Capillary tube
4 Adjustment head
Duct mounting
* 5
6 Mounting bracket
7 Clip
* 8
* 9
Adaptor plate (Duct fixing adaptor)
BS 2871 C106
BS 3605 CFS 316S 18
Dial
adjustment
option
Union kit
10 Liquid fill
* Items 5, 8 and 9 are shown overleaf.
Control valves
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
Self-acting controls
© Copyright 2016
SA121, SA122,
SA123, SA128 and SA1219

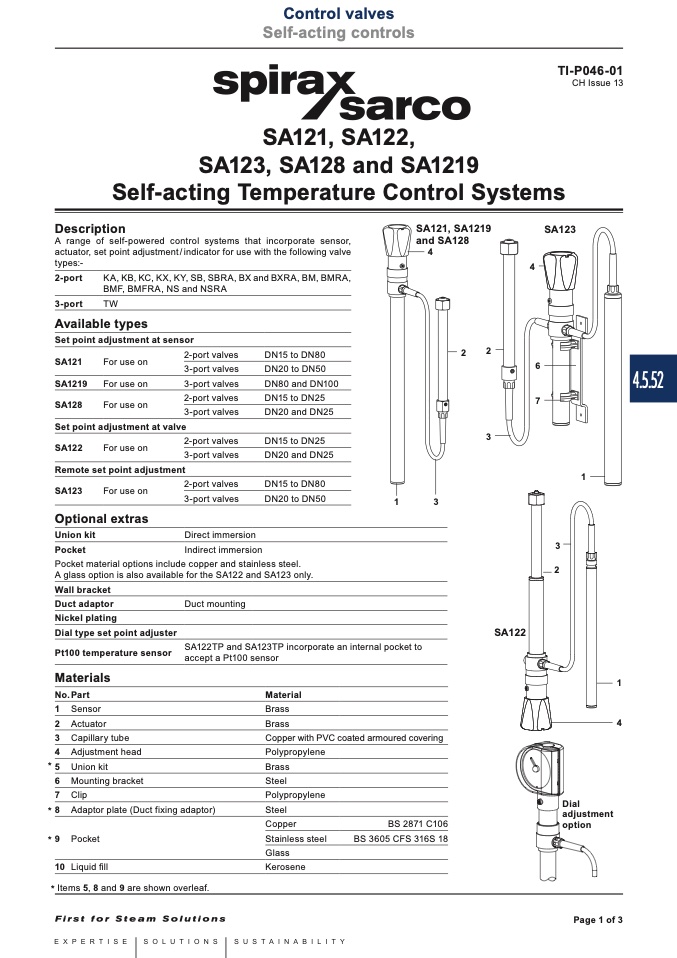

Self-acting Temperature Control Systems
Description
A range of self-powered control systems that incorporate sensor,
actuator, set point adjustment / indicator for use with the following valve
types:-
2-port
KA, KB, KC, KX, KY, SB, SBRA, BX and BXRA, BM, BMRA,
BMF, BMFRA, NS and NSRA
SA121, SA1219
and SA128
SA123
3-port
TW
Available types
Set point adjustment at sensor
2
4
2
6
7
3
SA121
For use on
SA1219 For use on
SA128
For use on
2-port valves
3-port valves
3-port valves
2-port valves
3-port valves
DN15 to DN80
DN20 to DN50
DN80 and DN100
DN15 to DN25
DN20 and DN25
DN15 to DN25
DN20 and DN25
DN15 to DN80
DN20 to DN50
4.5.52
SA122TP and SA123TP incorporate an internal pocket to
accept a Pt100 sensor
Material
Brass
Brass
Copper with PVC coated armoured covering
Polypropylene
Brass
Steel
Polypropylene
Steel
Copper
Stainless steel
Glass
Kerosene
1
4
4
SA122
TI-P046-01
CH Issue 13
Page 1 of 3
