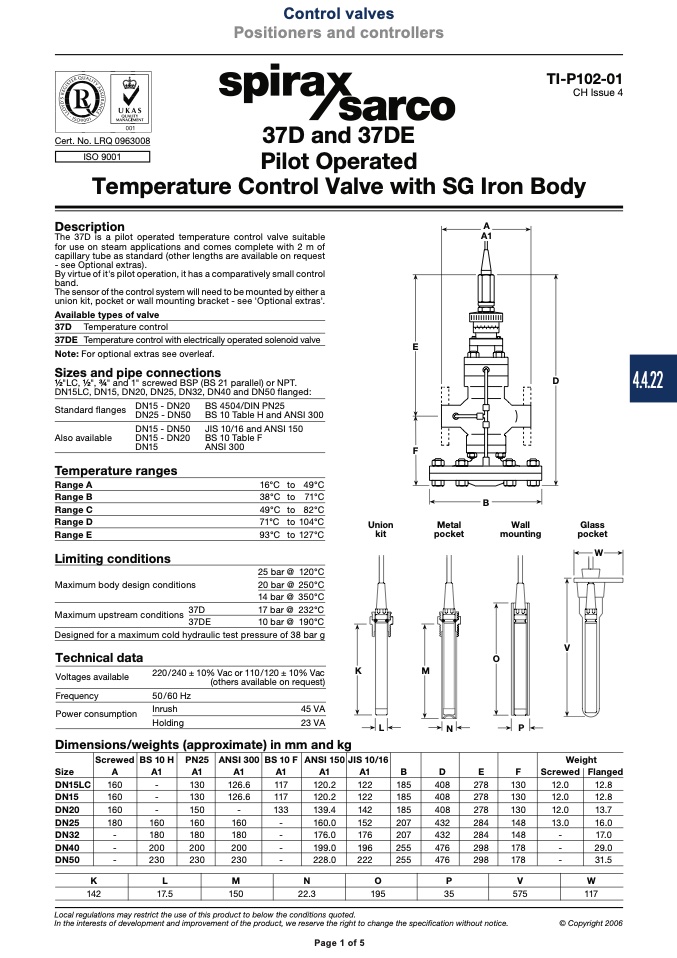

Control valves

Positioners and controllers

Page 1 of 5

ISO 9001

TI-P102-01

CH Issue 4

Cert. No. LRQ 0963008

37D and 37DE

Pilot Operated

Temperature Control Valve with SG Iron Body

Description

The 37D is a pilot operated temperature control valve suitable

for use on steam applications and comes complete with 2 m of

capillary tube as standard (other lengths are available on request

- see Optional extras).

By virtue of it's pilot operation, it has a comparatively small control

band.

The sensor of the control system will need to be mounted by either a

union kit, pocket or wall mounting bracket - see 'Optional extras'.

Available types of valve

37D Temperature control

37DE Temperaturecontrolwithelectricallyoperatedsolenoidvalve

Note: For optional extras see overleaf.

Sizes and pipe connections

1⁄2"LC, 1⁄2", 3⁄4" and 1" screwed BSP (BS 21 parallel) or NPT.

DN15LC, DN15, DN20, DN25, DN32, DN40 and DN50 flanged:

A

A1

E

F

D

Standard flanges

Also available

DN15 - DN20

DN25 - DN50

DN15 - DN50

DN15 - DN20

DN15

BS 4504/DIN PN25

BS 10 Table H and ANSI 300

JIS 10/16 and ANSI 150

BS 10 Table F

ANSI 300

Temperature ranges

Range A

Range B

Range C

Range D

Range E

Limiting conditions

Maximum body design conditions

Maximum upstream conditions

37D

37DE

16°C to

38°C to

49°C to

71°C to

93°C to

25 bar @

20 bar @

14 bar @

17 bar @

10 bar @

49°C

71°C

82°C

104°C

127°C

120°C

250°C

350°C

232°C

190°C

B

Union

kit

Metal

pocket

Wall

mounting

Glass

pocket

W

Designed for a maximum cold hydraulic test pressure of 38 bar g

Technical data

Voltages available

Frequency

Power consumption

O

V

Weight

Screwed Flanged

12.8

12.8

13.7

16.0

17.0

29.0

31.5

220/240 ± 10% Vac or 110/120 ± 10% Vac

(others available on request)

K

M

50/60 Hz

Inrush

Holding

45 VA

23 VA

L

N

P

Dimensions/weights (approximate) in mm and kg

Size

DN15LC

DN15

DN20

DN25

DN32

DN40

DN50

Screwed

A

160

160

160

180

-

-

-

BS 10 H

A1

-

-

-

160

180

200

230

PN25

A1

130

130

150

160

180

200

230

ANSI 300

A1

126.6

126.6

-

160

180

200

230

BS 10 F

A1

117

117

133

-

-

-

-

ANSI 150

A1

120.2

120.2

139.4

160.0

176.0

199.0

228.0

JIS 10/16

A1

122

122

142

152

176

196

222

B

185

185

185

207

207

255

255

D

408

408

408

432

432

476

476

E

278

278

278

284

284

298

298

F

130

130

130

148

148

178

178

12.0

12.0

12.0

13.0

-

-

-

L

M

N

O

P

V

17.5

150

22.3

195

35

575

K

W

142

117

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
