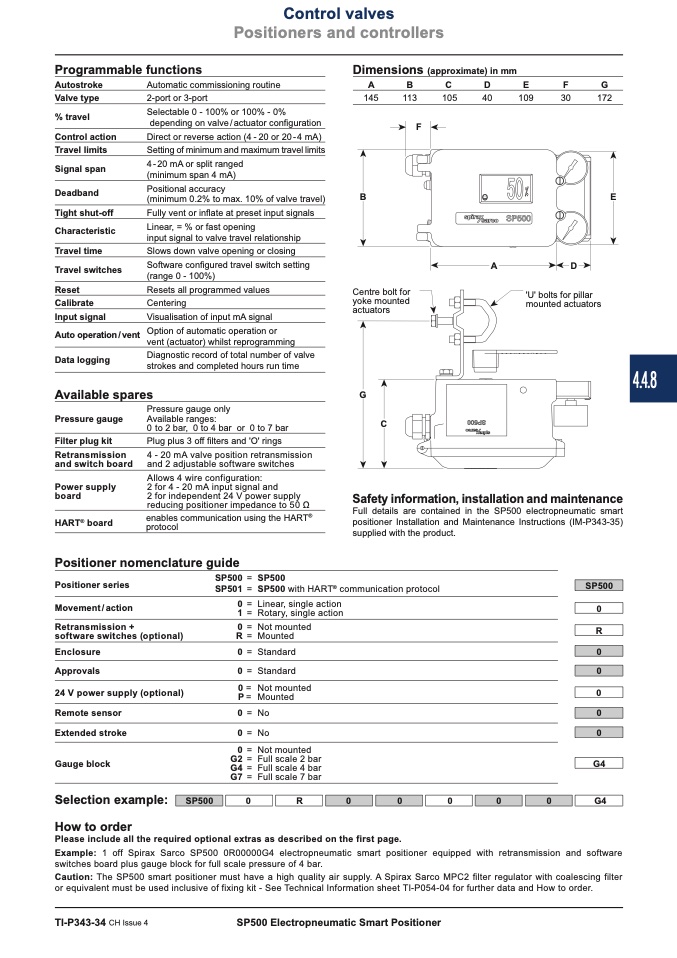

Control valves

Positioners and controllers

Programmable functions

Dimensions (approximate) in mm

A

B

C

D

E

F

G

Autostroke

Valve type

% travel

Control action

Travel limits

Signal span

Deadband

Tight shut-off

Characteristic

Travel time

Travel switches

Reset

Calibrate

Input signal

Auto operation / vent

Data logging

Automatic commissioning routine

2-port or 3-port

Selectable 0 - 100% or 100% - 0%

depending on valve/actuator configuration

Direct or reverse action (4 - 20 or 20 - 4 mA)

Setting of minimum and maximum travel limits

4 - 20 mA or split ranged

(minimum span 4 mA)

Positional accuracy

(minimum 0.2% to max. 10% of valve travel)

Fully vent or inflate at preset input signals

Linear, = % or fast opening

input signal to valve travel relationship

Slows down valve opening or closing

Software configured travel switch setting

(range 0 - 100%)

Resets all programmed values

Centering

Visualisation of input mA signal

Option of automatic operation or

vent (actuator) whilst reprogramming

Diagnostic record of total number of valve

strokes and completed hours run time

145

113

105

40

109

F

30

172

B

E

Centre bolt for

yoke mounted

actuators

G

A

D

'U' bolts for pillar

mounted actuators

Available spares

Pressure gauge

Filter plug kit

Retransmission

and switch board

Power supply

board

Pressure gauge only

Available ranges:

0 to 2 bar, 0 to 4 bar or 0 to 7 bar

Plug plus 3 off filters and 'O' rings

4 - 20 mA valve position retransmission

and 2 adjustable software switches

Allows 4 wire configuration:

2 for 4 - 20 mA input signal and

2 for independent 24 V power supply

reducing positioner impedance to 50 Ω

enables communication using the HART

®

protocol

C

HART

®

board

Positioner nomenclature guide

Safety information, installation and maintenance

Full details are contained in the SP500 electropneumatic smart

positioner Installation and Maintenance Instructions (IM-P343-35)

supplied with the product.

Positioner series

Movement / action

Retransmission +

software switches (optional)

Enclosure

Approvals

24 V power supply (optional)

Remote sensor

Extended stroke

Gauge block

Selection example:

SP500 = SP500

®

SP501 = SP500 with HART communication protocol

0 = Linear, single action

1 = Rotary, single action

0 = Not mounted

R = Mounted

SP500

0

R

0 = Standard

0

0 = Standard

0

0 = Not mounted

P= Mounted

0 = No

0

0 = No

0

0 = Not mounted

G2 = Full scale 2 bar

G4 = Full scale 4 bar

G7 = Full scale 7 bar

0

G4

SP500

0

R

0

0

0

0

0

G4

How to order

Please include all the required optional extras as described on the first page.

Example: 1 off Spirax Sarco SP500 0R00000G4 electropneumatic smart positioner equipped with retransmission and software

switches board plus gauge block for full scale pressure of 4 bar.

Caution: The SP500 smart positioner must have a high quality air supply. A Spirax Sarco MPC2 filter regulator with coalescing filter

or equivalent must be used inclusive of fixing kit - See Technical Information sheet TI-P054-04 for further data and How to order.

TI-P343-34 CH Issue 4

SP500 Electropneumatic Smart Positioner

4.4.8
