4.3.25

K series control valves (mk1)

2-port DN125, DN150 and DN200

C series control valves

Spira-trol

TM

K and J series control valves

3-port DN125, DN150 and DN200

QL series control valves

Model

AEL56411 AEL56412 AEL56413 AEL66311

AEL66312

AEL66313

Supply voltage

230 Vac

15 Vac

24 Vac

230 Vac

15 Vac 24 Vac / 24 Vdc

Supply frequency

50 / 60 Hz

50 / 60 Hz 50 / 60 Hz

Power consumption

100 VA 135 VA

135 VA 135 VA

Enclosure rating

IP65 IP65

Actuator speed

1 mm/s 0.2 - 0.4 mm/s

0.2 - 0.4 mm/s 0.2 - 0.4 mm/s

Stroke

100 mm

95 mm

95 mm 100 mm

Actuator thrust

25 kN 25 kN

Ambient limits

-20 to +60°C -20 to +60°C

Motor

Asynchronus capacitor reversing motor dc brushed motor

Terminations

1.5 mm2 1.5 mm2

Manual overide

Handwheel Handwheel

Conduit entries

3 x PG16 3 x PG16

Card power consumption

1 VA

Control valves Mounting flange Coupling part

QL series

EL5973 EL5946

K series (mk1)

C series EL5973 EL5948

Spira-trol

TM

K and J series EL5974 EL5955

Control valves

Electric actuators

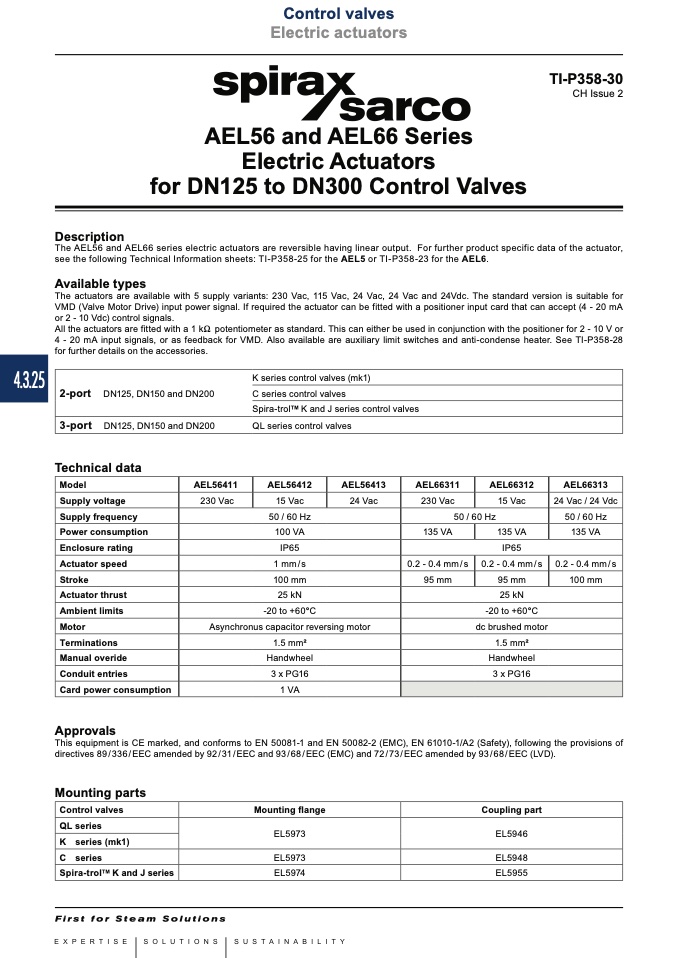

AEL56 and AEL66 Series

Electric Actuators

for DN125 to DN300 Control Valves

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

TI-P358-30

CH Issue 2

Description

The AEL56 and AEL66 series electric actuators are reversible having linear output. For further product specific data of the actuator,

see the following Technical Information sheets: TI-P358-25 for the AEL5 or TI-P358-23 for the AEL6.

Available types

The actuators are available with 5 supply variants: 230 Vac, 115 Vac, 24 Vac, 24 Vac and 24Vdc. The standard version is suitable for

VMD (Valve Motor Drive) input power signal. If required the actuator can be fitted with a positioner input card that can accept (4 - 20 mA

or 2 - 10 Vdc) control signals.

All the actuators are fitted with a 1 kW potentiometer as standard. This can either be used in conjunction with the positioner for 2 - 10 V or

4 - 20 mA input signals, or as feedback for VMD. Also available are auxiliary limit switches and anti-condense heater. See TI-P358-28

for further details on the accessories.

Technical data

Approvals

This equipment is CE marked, and conforms to EN 50081-1 and EN 50082-2 (EMC), EN 61010-1/A2 (Safety), following the provisions of

directives 89/336/EEC amended by 92/31/EEC and 93/68/EEC (EMC) and 72/73/EEC amended by 93/68/EEC (LVD).

Mounting parts
