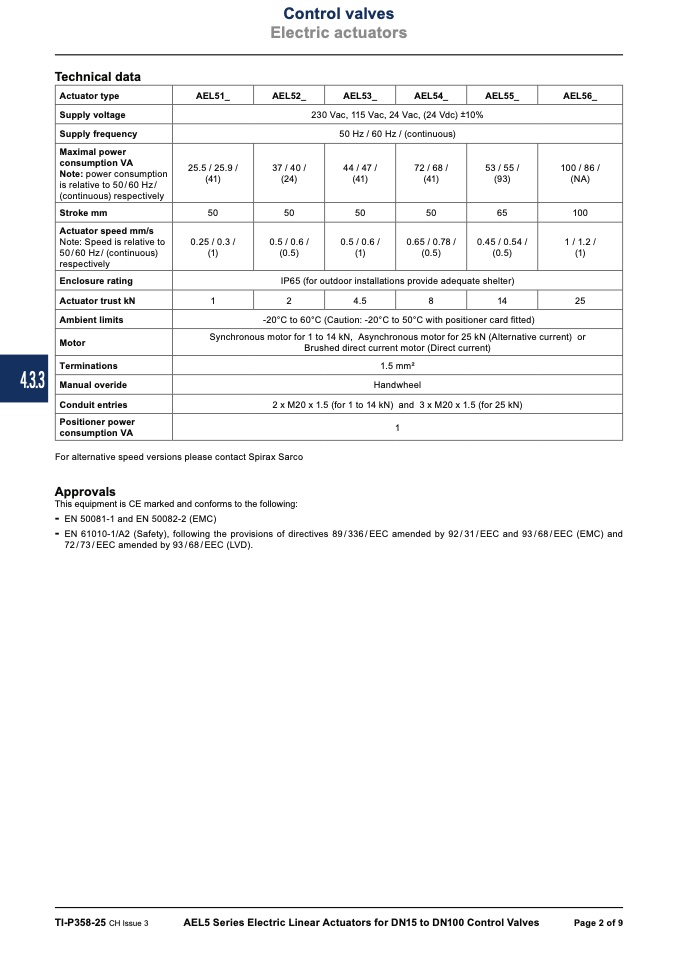

Actuator type

AEL51_

AEL52_ AEL53_ AEL54_ AEL55_ AEL56_

Supply voltage 230 Vac, 115 Vac, 24 Vac, (24 Vdc) ±10%

Supply frequency

50 Hz / 60 Hz / (continuous)

Maximal power

consumption VA

Note: power consumption

is relative to 50/60 Hz/

(continuous) respectively

25.5 / 25.9 /

(41)

37 / 40 /

(24)

44 / 47 /

(41)

72 / 68 /

(41)

53 / 55 /

(93)

100 / 86 /

(NA)

Stroke mm

50

50 50 50 65 100

Actuator speed mm/s

Note: Speed is relative to

50 / 60 Hz / (continuous)

respectively

0.25 / 0.3 /

(1)

0.5 / 0.6 /

(0.5)

0.5 / 0.6 /

(1)

0.65 / 0.78 /

(0.5)

0.45 / 0.54 /

(0.5)

1 / 1.2 /

(1)

Enclosure rating IP65 (for outdoor installations provide adequate shelter)

Actuator trust kN

1

2 4.5 8 14 25

Ambient limits -20°C to 60°C (Caution: -20°C to 50°C with positioner card fitted)

Motor

Synchronous motor for 1 to 14 kN, Asynchronous motor for 25 kN (Alternative current) or

Brushed direct current motor (Direct current)

Terminations

1.5 mm2

Manual overide

Handwheel

Conduit entries

2xM20x1.5(for1to14kN) and 3xM20x1.5(for25kN)

Positioner power

consumption VA

1

4.3.3

Control valves

Electric actuators

Technical data

For alternative speed versions please contact Spirax Sarco

Approvals

This equipment is CE marked and conforms to the following:

-

EN 50081-1 and EN 50082-2 (EMC)

-

EN 61010-1/A2 (Safety), following the provisions of directives 89/336/EEC amended by 92/31/EEC and 93/68/EEC (EMC) and

72/73/EEC amended by 93/68/EEC (LVD).

TI-P358-25 CH Issue 3

AEL5 Series Electric Linear Actuators for DN15 to DN100 Control Valves

Page 2 of 9
