Control valves

Pneumatic actuators

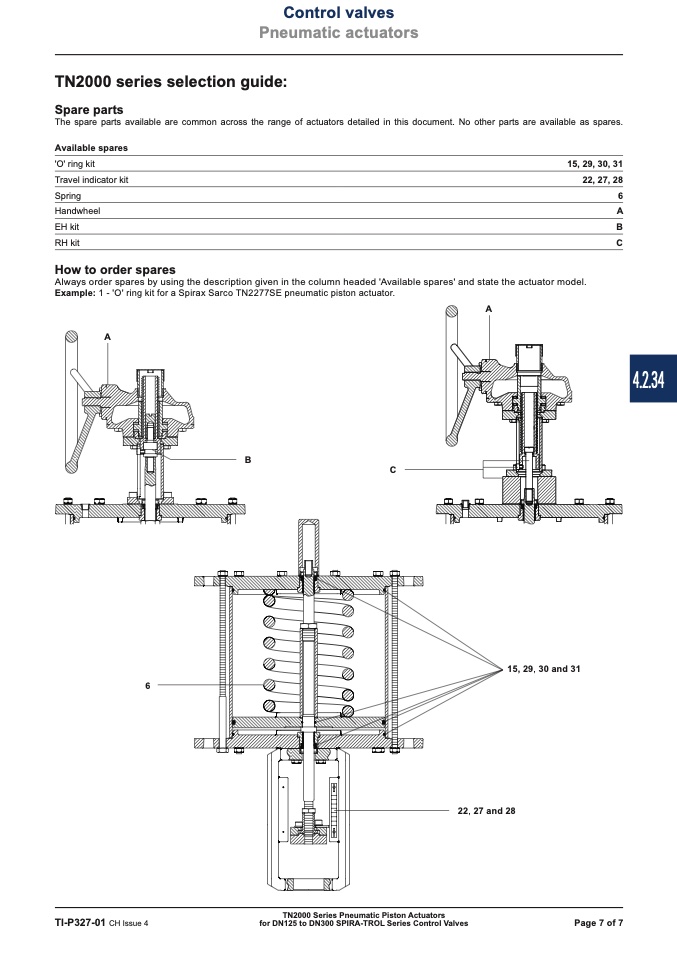

TN2000 series selection guide:

Spare parts

The spare parts available are common across the range of actuators detailed in this document. No other parts are available as spares.

Available spares

'O' ring kit

Travel indicator kit

Spring

Handwheel

EH kit

RH kit

How to order spares

15, 29, 30, 31

22, 27, 28

6

A

B

C

Always order spares by using the description given in the column headed 'Available spares' and state the actuator model.

Example: 1 - 'O' ring kit for a Spirax Sarco TN2277SE pneumatic piston actuator.

A

TI-P327-01 CH Issue 4

TN2000 Series Pneumatic Piston Actuators

for DN125 to DN300 SPIRA-TROL Series Control Valves

Page 7 of 7

A

6

B

C

22, 27 and 28

15, 29, 30 and 31
