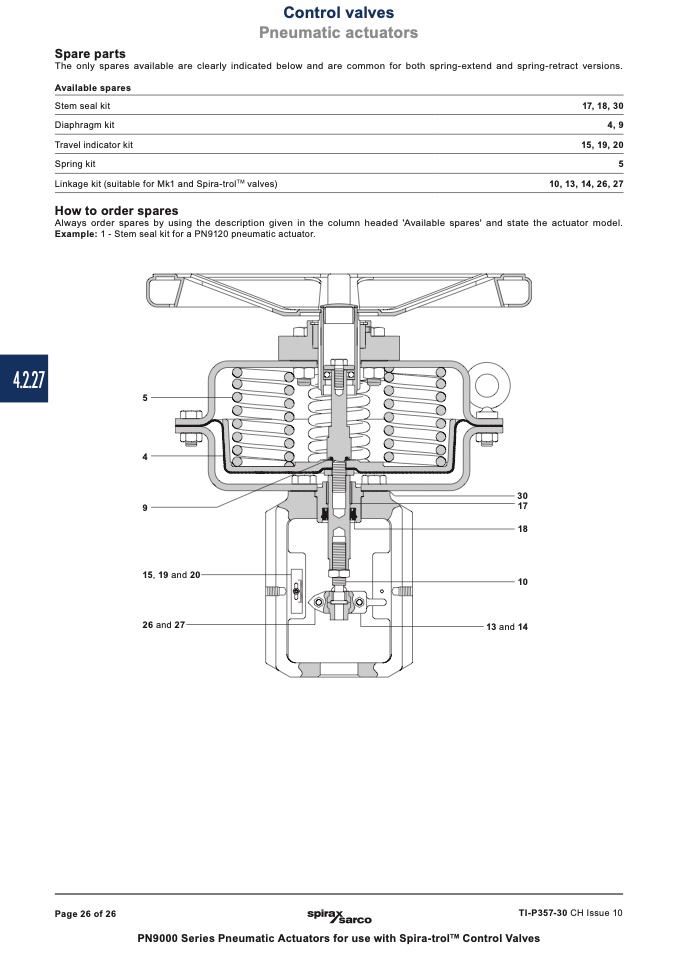

Spare parts

Available spares

Stem seal kit

Diaphragm kit

Travel indicator kit

Spring kit

Linkage kit (suitable for Mk1 and Spira-trol

TM

valves)

How to order spares

17, 18, 30

4, 9

15, 19, 20

5

10, 13, 14, 26, 27

Control valves

Pneumatic actuators

The only spares available are clearly indicated below and are common for both spring-extend and spring-retract versions.

Always order spares by using the description given in the column headed 'Available spares' and state the actuator model.

Example: 1 - Stem seal kit for a PN9120 pneumatic actuator.

Page 26 of 26

TI-P357-30 CH Issue 10

PN9000 Series Pneumatic Actuators for use with Spira-trol

TM

Control Valves
