PNP

9

3

3

7

E

4.2.25

Control valves

Pneumatic actuators

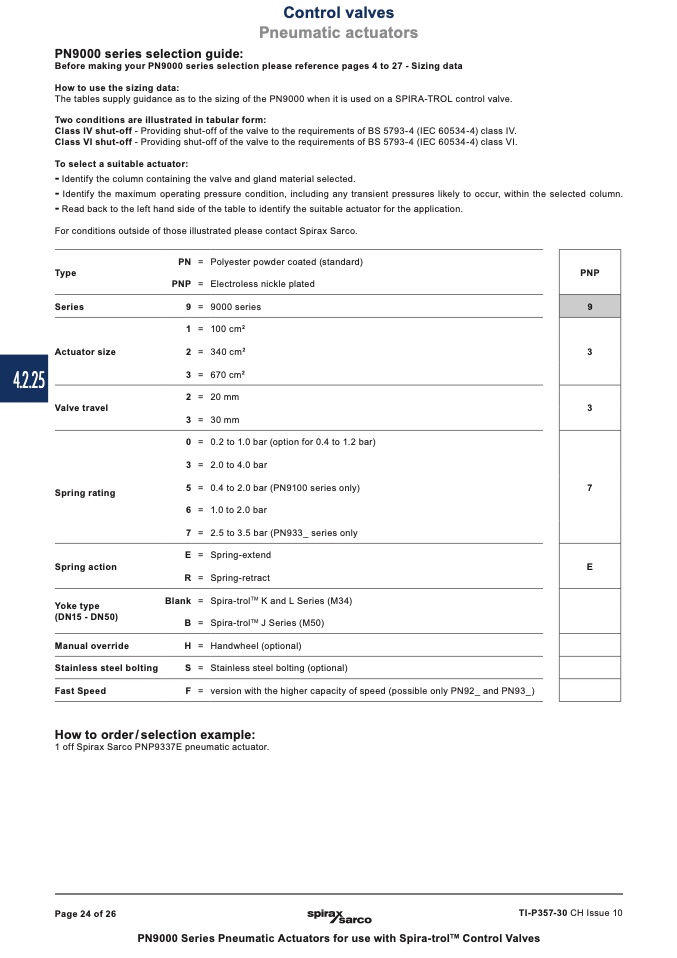

PN9000 series selection guide:

Before making your PN9000 series selection please reference pages 4 to 27 - Sizing data

How to use the sizing data:

The tables supply guidance as to the sizing of the PN9000 when it is used on a SPIRA-TROL control valve.

Two conditions are illustrated in tabular form:

Class IV shut-off - Providing shut-off of the valve to the requirements of BS 5793-4 (IEC 60534-4) class IV.

Class VI shut-off - Providing shut-off of the valve to the requirements of BS 5793-4 (IEC 60534-4) class VI.

To select a suitable actuator:

-

Identify the column containing the valve and gland material selected.

-

Identify the maximum operating pressure condition, including any transient pressures likely to occur, within the selected column.

-

Read back to the left hand side of the table to identify the suitable actuator for the application.

For conditions outside of those illustrated please contact Spirax Sarco.

Type

Series

Actuator size

Valve travel

Spring rating

Spring action

Yoke type

(DN15 - DN50)

Manual override

Stainless steel bolting

Fast Speed

PN =

PNP =

9 =

1 =

2 =

3 =

2 =

3 =

0 =

3 =

5 =

6 =

7 =

E =

R =

Blank =

B =

H =

S =

F =

Polyester powder coated (standard)

Electroless nickle plated

9000 series

100 cm

2

340 cm

2

670 cm

2

20mm

30mm

0.2 to 1.0 bar (option for 0.4 to 1.2 bar)

2.0to4.0bar

0.4 to 2.0 bar (PN9100 series only)

1.0to2.0bar

2.5 to 3.5 bar (PN933_ series only

Spring-extend

Spring-retract

Spira-trol

TM

K and L Series (M34)

Spira-trol

TM

J Series (M50)

Handwheel (optional)

Stainless steel bolting (optional)

version with the higher capacity of speed (possible only PN92_ and PN93_)

How to order / selection example:

1 off Spirax Sarco PNP9337E pneumatic actuator.

Page 24 of 26

TI-P357-30 CH Issue 10

PN9000 Series Pneumatic Actuators for use with Spira-trol

TM

Control Valves
