Control valves

Control valves

DN25

P

F

6

3

G

2

NC

4.1.111

DN25

P

F

6

G

3

2

NC

Flanged EN 1092 PN40

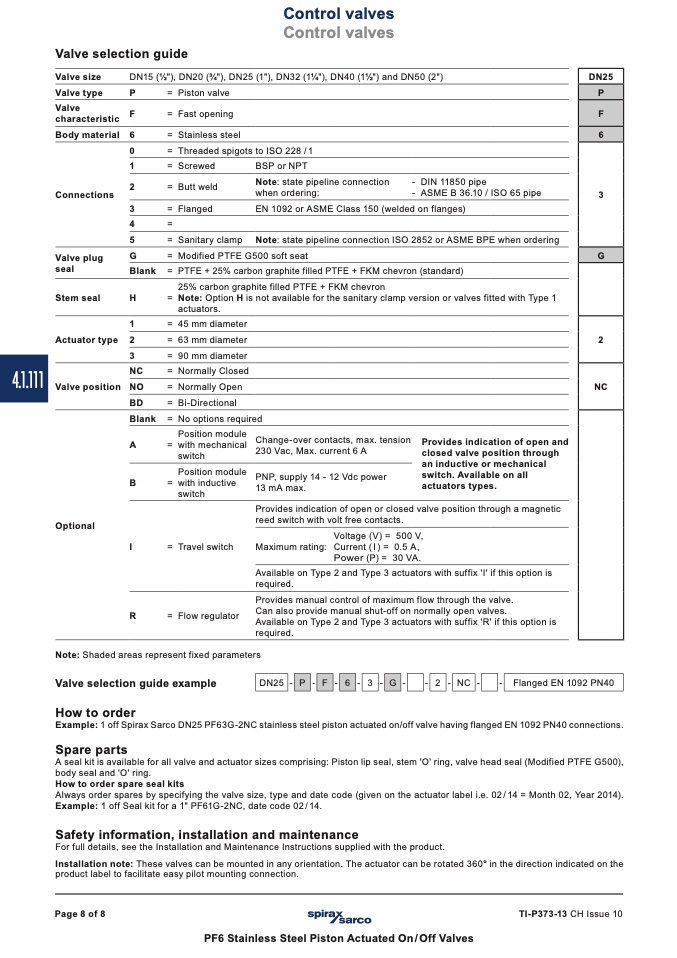

Valve selection guide

Valve size

DN15 (1⁄2"), DN20 (3⁄4"), DN25 (1"), DN32 (11⁄4"), DN40 (11⁄2") and DN50 (2")

Valve type

P

Valve

F

characteristic

Body material 6

= Piston valve

= Fast opening

= Stainless steel

0

=

1

=

2

=

3

=

4

=

5

=

G

=

Blank =

Threaded spigots to ISO 228 /1

Screwed

BSP or NPT

Connections

Butt weld

Note: state pipeline connection

when ordering:

- DIN 11850 pipe

- ASME B 36.10 / ISO 65 pipe

Valve plug

seal

Flanged

EN 1092 or ASME Class 150 (welded on flanges)

Sanitary clamp Note: state pipeline connection ISO 2852 or ASME BPE when ordering

Modified PTFE G500 soft seat

PTFE + 25% carbon graphite filled PTFE + FKM chevron (standard)

25% carbon graphite filled PTFE + FKM chevron

Note: Option H is not available for the sanitary clamp version or valves fitted with Type 1

actuators.

Stem seal

H

=

1

=

Actuator type 2

=

3

=

NC

=

Valve position NO

=

45 mm diameter

63 mm diameter

90 mm diameter

Normally Closed

Normally Open

Bi-Directional

No options required

BD

=

Blank =

A

=

B

=

I

=

R

=

Position module

with mechanical

switch

Position module

with inductive

switch

Travel switch

Flow regulator

Change-over contacts, max. tension

230 Vac, Max. current 6 A

PNP, supply 14 - 12 Vdc power

13 mA max.

Provides indication of open and

closed valve position through

an inductive or mechanical

switch. Available on all

actuators types.

Optional

Provides indication of open or closed valve position through a magnetic

reed switch with volt free contacts.

Voltage (V) = 500 V,

Maximum rating: Current ( I ) = 0.5 A,

Power (P) = 30 VA.

Available on Type 2 and Type 3 actuators with suffix 'I' if this option is

required.

Provides manual control of maximum flow through the valve.

Can also provide manual shut-off on normally open valves.

Available on Type 2 and Type 3 actuators with suffix 'R' if this option is

required.

Note: Shaded areas represent fixed parameters

Valve selection guide example

-

-

-

-

-

-

-

-

-

-

How to order

Example: 1 off Spirax Sarco DN25 PF63G-2NC stainless steel piston actuated on/off valve having flanged EN 1092 PN40 connections.

Spare parts

A seal kit is available for all valve and actuator sizes comprising: Piston lip seal, stem 'O' ring, valve head seal (Modified PTFE G500),

body seal and 'O' ring.

How to order spare seal kits

Always order spares by specifying the valve size, type and date code (given on the actuator label i.e. 02/14 = Month 02, Year 2014).

Example: 1 off Seal kit for a 1" PF61G-2NC, date code 02/14.

Safety information, installation and maintenance

For full details, see the Installation and Maintenance Instructions supplied with the product.

Installation note: These valves can be mounted in any orientation. The actuator can be rotated 360° in the direction indicated on the

product label to facilitate easy pilot mounting connection.

Page 8 of 8

TI-P373-13 CH Issue 10

PF6 Stainless Steel Piston Actuated On/Off Valves
