Associated equipment

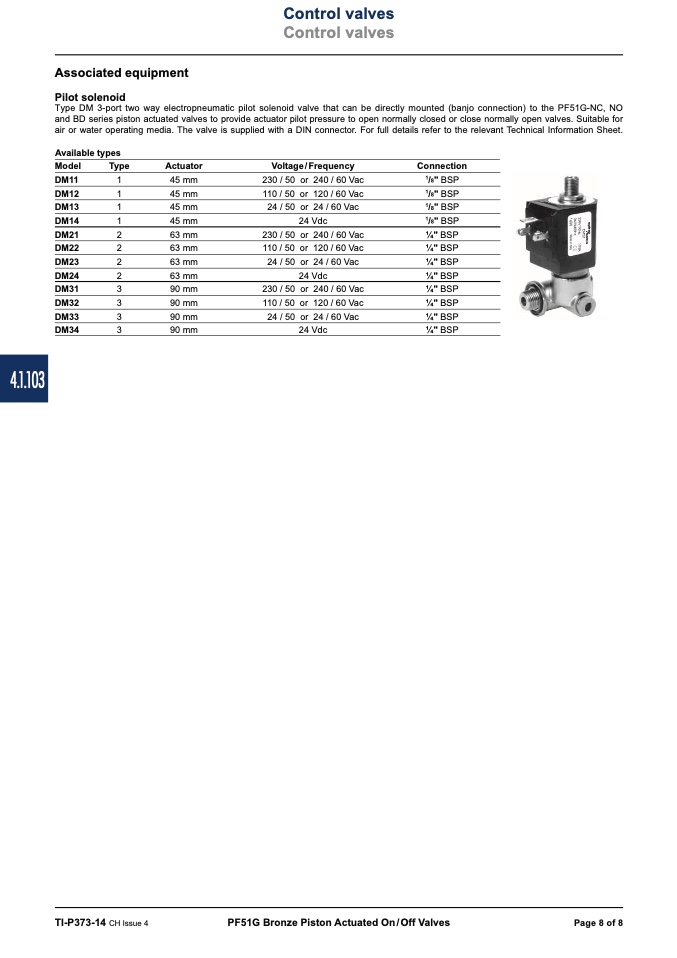

Pilot solenoid

Type DM 3-port two way electropneumatic pilot solenoid valve that can be directly mounted (banjo connection) to the PF51G-NC, NO

and BD series piston actuated valves to provide actuator pilot pressure to open normally closed or close normally open valves. Suitable for

air or water operating media. The valve is supplied with a DIN connector. For full details refer to the relevant Technical Information Sheet.

Available types

Model

Type

DM11

1

DM12

1

DM13

1

DM14

1

DM21

2

DM22

2

DM23

2

DM24

2

DM31

3

DM32

3

DM33

3

DM34

3

Actuator

45 mm

45 mm

45 mm

45 mm

63 mm

63 mm

63 mm

63 mm

90 mm

90 mm

90 mm

90 mm

Voltage / Frequency

Connection

1

/

8

" BSP

1

/

8

" BSP

1

/

8

" BSP

1

/

8

" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

1⁄4" BSP

230 / 50

110 / 50

24 / 50

230 / 50

110 / 50

24 / 50

230 / 50

110 / 50

24 / 50

or 240 / 60 Vac

or 120 / 60 Vac

or 24 / 60 Vac

24 Vdc

or 240 / 60 Vac

or 120 / 60 Vac

or 24 / 60 Vac

24 Vdc

or 240 / 60 Vac

or 120 / 60 Vac

or 24 / 60 Vac

24 Vdc
