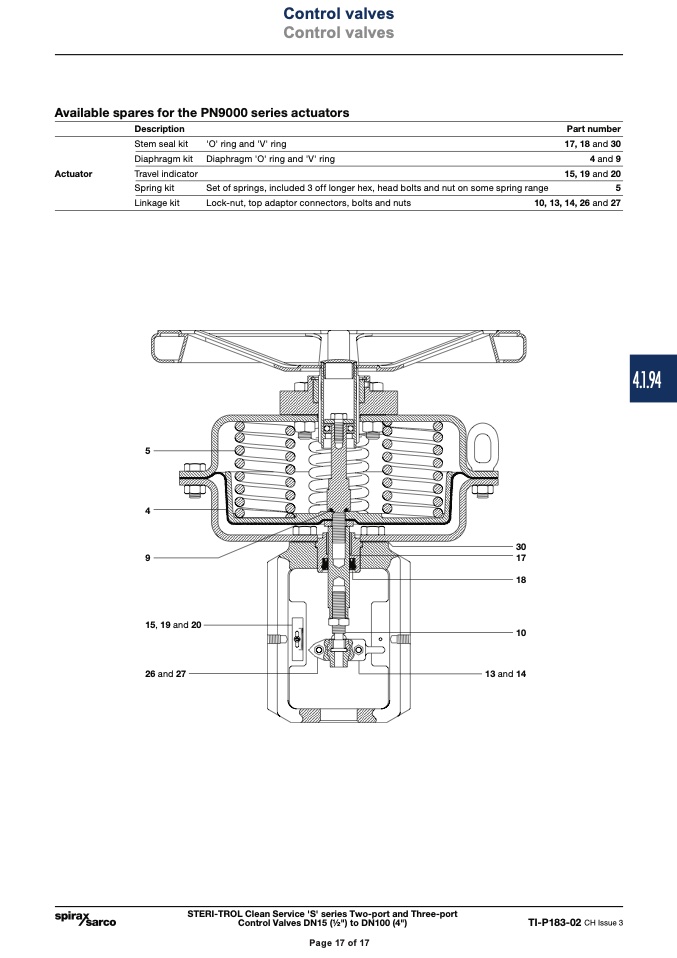

Available spares for the PN9000 series actuators

Description

Part number

17, 18 and 30

4 and 9

15, 19 and 20

5

10, 13, 14, 26 and 27

Actuator

Stem seal kit

Diaphragm kit

Travel indicator

Spring kit

Linkage kit

'O' ring and 'V' ring

Diaphragm 'O' ring and 'V' ring

15, 19 and 20

18

10

13 and 14

26 and 27

Control valves

Control valves

Page 17 of 17

Set of springs, included 3 off longer hex, head bolts and nut on some spring range

Lock-nut, top adaptor connectors, bolts and nuts

5

4

30

9

17

STERI-TROL Clean Service 'S' series Two-port and Three-port

Control Valves DN15 (1⁄2") to DN100 (4")

TI-P183-02 CH Issue 3

Page 17 of 17

4.1.94
