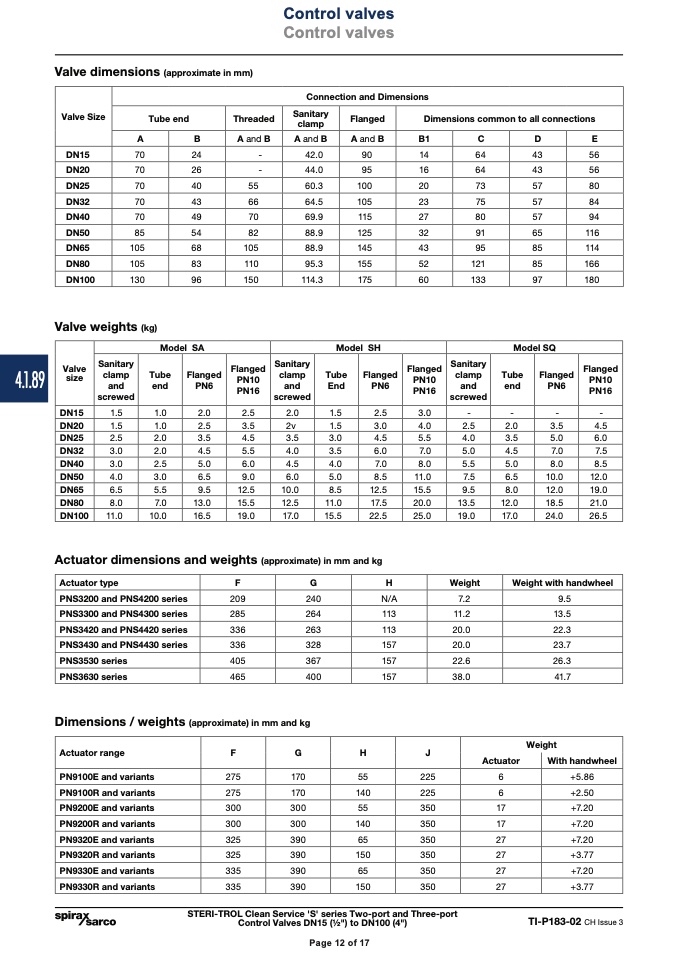

Control valves
Control valves
Page 12 of 17
Valve Size
Connection and Dimensions
Tube end
Threaded
Sanitary
clamp
Flanged
Dimensions common to all connections
A
B
A and B
A and B
A and B
B1
C
D
E
DN15 70
24 -
42.0 90
14 64
43 56
DN20
70
26
-
44.0
95
16
64
43
56
DN25 70
40 55
60.3 100
20 73
57 80
DN32 70
43 66
64.5 105
23 75
57 84
DN40
70
49
70
69.9
115
27
80
57
94
DN50
85
54
82
88.9
125
32
91
65
116
DN65
105
68
105
88.9
145
43
95
85
114
DN80
105
83
110
95.3
155
52
121
85
166
DN100
130
96
150
114.3
175
60
133
97
180
Valve
size
Model SA Model SH
Model SQ
Sanitary
clamp
and
screwed
Tube
end
Flanged
PN6
Flanged
PN10
PN16
Sanitary
clamp
and
screwed
Tube
End
Flanged
PN6
Flanged
PN10
PN16
Sanitary
clamp
and
screwed
Tube
end
Flanged
PN6
Flanged
PN10
PN16
DN15 1.5
1.0
2.0 2.5
2.0
1.5
2.5
3.0
-
- - -
DN20 1.5
1.0 2.5 3.5
2v 1.5
3.0 4.0
2.5 2.0 3.5 4.5
DN25 2.5
2.0
3.5 4.5
3.5
3.0
4.5
5.5
4.0
3.5 5.0 6.0
DN32 3.0
2.0
4.5 5.5
4.0
3.5
6.0
7.0
5.0
4.5 7.0 7.5
DN40 3.0
2.5
5.0 6.0
4.5
4.0
7.0
8.0
5.5
5.0 8.0 8.5
DN50 4.0
3.0
6.5 9.0
6.0
5.0
8.5
11.0
7.5
6.5 10.0 12.0
DN65 6.5
5.5
9.5 12.5
10.0
8.5
12.5
15.5
9.5
8.0 12.0 19.0
DN80 8.0
7.0 13.0 15.5
12.5 11.0
17.5 20.0
13.5 12.0 18.5 21.0
DN100 11.0
10.0
16.5 19.0
17.0
15.5
22.5
25.0
19.0
17.0 24.0 26.5
4.1.89
Actuator type
F G H Weight Weight with handwheel
PNS3200 and PNS4200 series 209 240 N/A 7.2 9.5
PNS3300 and PNS4300 series
285 264 113 11.2 13.5
PNS3420 and PNS4420 series
336 263 113 20.0 22.3
PNS3430 and PNS4430 series
336 328 157 20.0 23.7
PNS3530 series
405 367 157 22.6 26.3
PNS3630 series
465 400 157 38.0 41.7
Actuator range
F G H J
Weight
Actuator
With handwheel
PN9100E and variants
275 170 55 225 6 +5.86
PN9100R and variants
275 170 140 225 6 +2.50
PN9200E and variants
300 300 55 350 17 +7.20
PN9200R and variants
300 300 140 350 17 +7.20
PN9320E and variants
325 390 65 350 27 +7.20
PN9320R and variants 325 390 150 350 27 +3.77
PN9330E and variants
335 390 65 350 27 +7.20
PN9330R and variants
335 390 150 350 27 +3.77
Valve dimensions (approximate in mm)
Valve weights (kg)
Actuator dimensions and weights (approximate) in mm and kg
Dimensions / weights (approximate) in mm and kg
STERI-TROL Clean Service 'S' series Two-port and Three-port
Control Valves DN15 (1⁄2") to DN100 (4")
TI-P183-02 CH Issue 3
Page 12 of 17
