4.1.79

Materials

PNS3000 series

4

16

3

7

10

14

11

5

1

2

6

8

15

12

Control valves

Control valves

Page 2 of 17

10

3

1

7

9

4

2

PNS4000 series

16

24

14

11

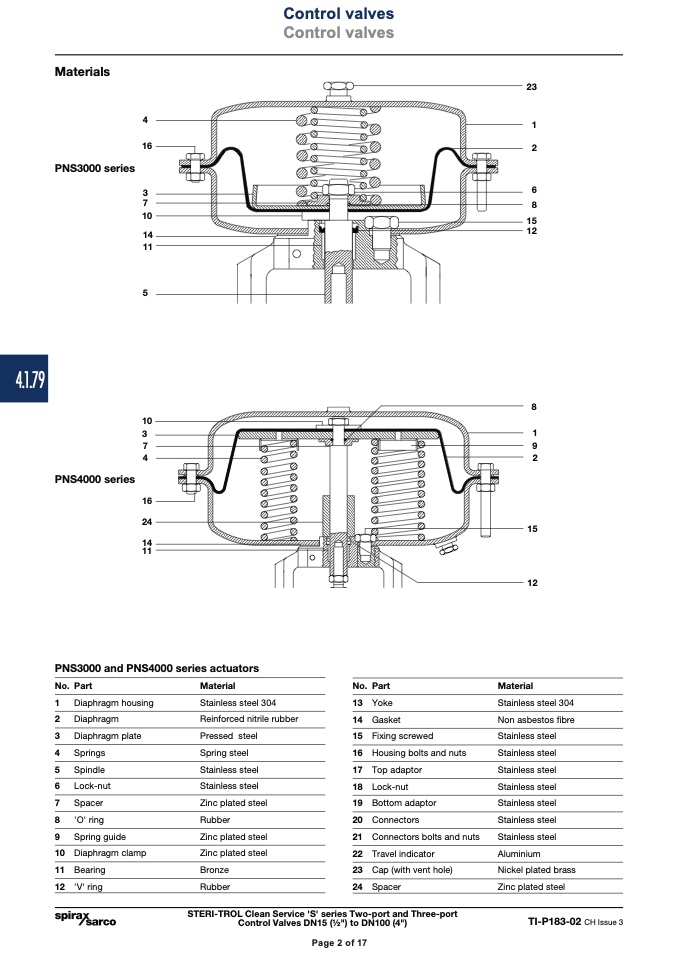

PNS3000 and PNS4000 series actuators

15

12

Material

Stainless steel 304

Non asbestos fibre

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Aluminium

Nickel plated brass

Zinc plated steel

TI-P183-02 CH Issue 3

No. Part

1

Diaphragm housing

2

Diaphragm

3

Diaphragm plate

4

Springs

5

Spindle

6

Lock-nut

7

Spacer

8

'O' ring

9

Spring guide

10 Diaphragm clamp

11 Bearing

12 'V' ring

Material

Stainless steel 304

Reinforced nitrile rubber

Pressed steel

Spring steel

Stainless steel

Stainless steel

Zinc plated steel

Rubber

Zinc plated steel

Zinc plated steel

Bronze

Rubber

No. Part

13 Yoke

14 Gasket

15 Fixing screwed

16 Housing bolts and nuts

17 Top adaptor

18 Lock-nut

19 Bottom adaptor

20 Connectors

21 Connectors bolts and nuts

22 Travel indicator

23 Cap (with vent hole)

24 Spacer

STERI-TROL Clean Service 'S' series Two-port and Three-port

Control Valves DN15 (1⁄2") to DN100 (4")

Page 2 of 17

23

8
