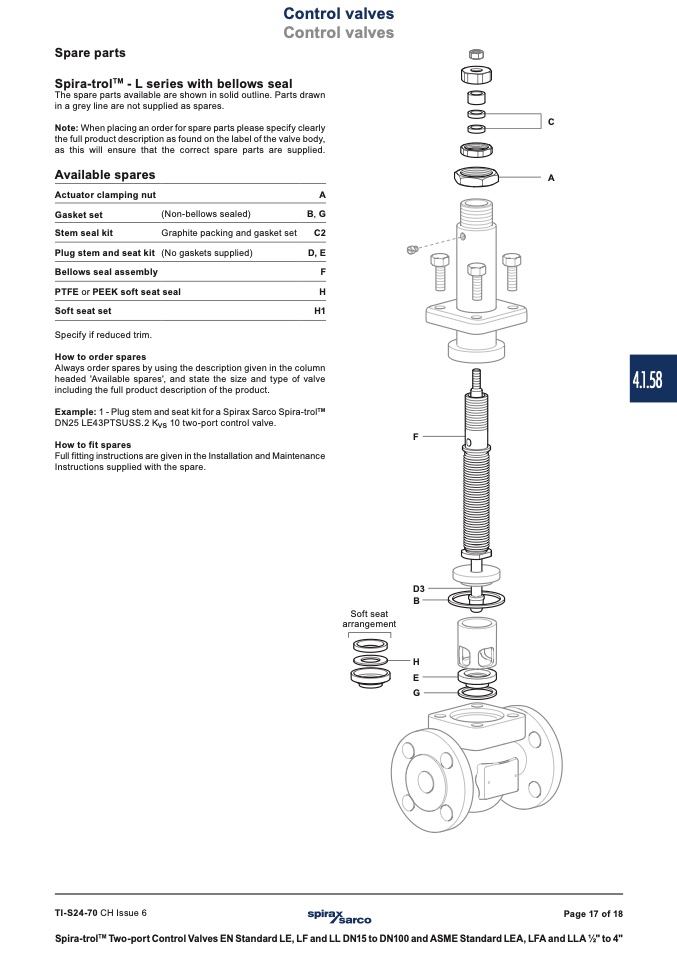

Spare parts

Spira-trol

TM

- L series with bellows seal

The spare parts available are shown in solid outline. Parts drawn

in a grey line are not supplied as spares.

Note: When placing an order for spare parts please specify clearly

the full product description as found on the label of the valve body,

as this will ensure that the correct spare parts are supplied.

C

A

Available spares

Actuator clamping nut

Gasket set

Stem seal kit

Plug stem and seat kit

Bellows seal assembly

PTFE or PEEK soft seat seal

Soft seat set

A

B, G

C2

D, E

F

H

H1

Specify if reduced trim.

How to order spares

(Non-bellows sealed)

Graphite packing and gasket set

(No gaskets supplied)

Always order spares by using the description given in the column

headed 'Available spares', and state the size and type of valve

including the full product description of the product.

Example: 1 - Plug stem and seat kit for a Spirax Sarco Spira-trol

TM

DN25 LE43PTSUSS.2 Kvs 10 two-port control valve.

How to fit spares

Full fitting instructions are given in the Installation and Maintenance

Instructions supplied with the spare.

4.1.58

Control valves

Control valves

TI-S24-70 CH Issue 6

Spira-trol

TM

Two-port Control Valves EN Standard LE, LF and LL DN15 to DN100 and ASME Standard LEA, LFA and LLA 1⁄2" to 4"

Soft seat

arrangement

F

D3

B

H

E

G
