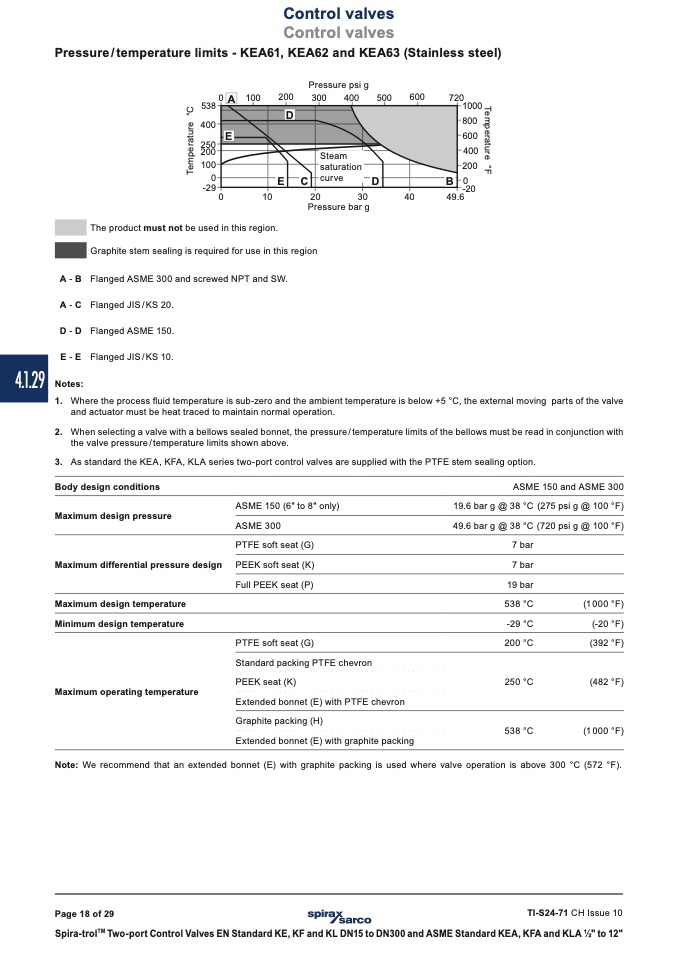

Pressure / temperature limits - KEA61, KEA62 and KEA63 (Stainless steel)

��

Pressure psi g

��

Pressure bar g

The product must not be used in this region.

Graphite stem sealing is required for use in this region

A-B Flanged ASME 300 and screwed NPT and SW.

A-C Flanged JIS / KS 20.

D-D Flanged ASME 150.

E-E Flanged JIS / KS 10.

Notes:

1. Where the process fluid temperature is sub-zero and the ambient temperature is below +5 °C, the external moving parts of the valve

and actuator must be heat traced to maintain normal operation.

2. When selecting a valve with a bellows sealed bonnet, the pressure / temperature limits of the bellows must be read in conjunction with

the valve pressure / temperature limits shown above.

3. As standard the KEA, KFA, KLA series two-port control valves are supplied with the PTFE stem sealing option.

Body design conditions

Maximum design pressure

Maximum differential pressure design

Maximum design temperature

Minimum design temperature

Maximum operating temperature

ASME 150 and ASME 300

ASME150(6"to8"only)

ASME300

PTFE soft seat (G)

PEEK soft seat (K)

Full PEEK seat (P)

PTFE soft seat (G)

Standard packing PTFE chevron

PEEK seat (K)

Extended bonnet (E) with PTFE chevron

Graphite packing (H)

Extended bonnet (E) with graphite packing

19.6barg@38°C

49.6barg@38°C

7 bar

19 bar

538 °C

-29 °C

200 °C

250 °C

538 °C

(275psig@100°F)

(720psig@100°F)

(1000 °F)

(-20 °F)

(392 °F)

(482 °F)

(1 000 °F)

Note: We recommend that an extended bonnet (E) with graphite packing is used where valve operation is above 300 °C (572 °F).
