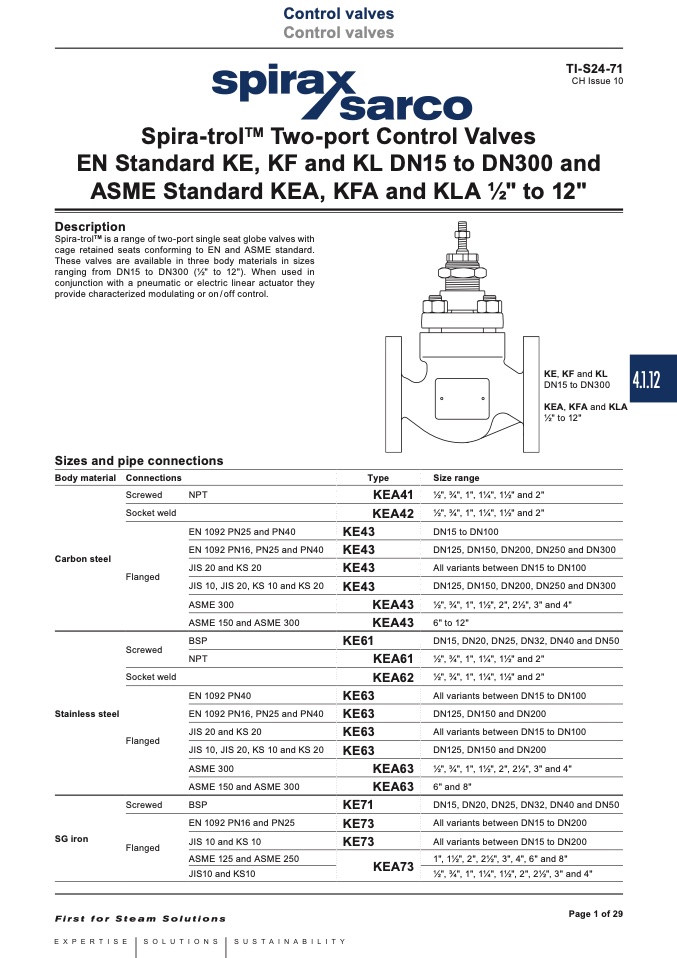

Control valves

Local regulations may restrict the use of this product to below the conditions quoted.

Control valves

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-S24-71

CH Issue 10

Spira-trol

TM

Two-port Control Valves

EN Standard KE, KF and KL DN15 to DN300 and

ASME Standard KEA, KFA and KLA 1⁄2" to 12"

Description

Spira-trol

TM

is a range of two-port single seat globe valves with

cage retained seats conforming to EN and ASME standard.

These valves are available in three body materials in sizes

ranging from DN15 to DN300 (1⁄2" to 12"). When used in

conjunction with a pneumatic or electric linear actuator they

provide characterized modulating or on / off control.

KE, KF and KL

DN15 to DN300

KEA, KFA and KLA

1⁄2" to 12"

Sizes and pipe connections

Type

KEA41

KEA42

KE43

KE43

KE43

KE43

KEA43

KEA43

KE61

KEA61

KEA62

KE63

KE63

KE63

KE63

KEA63

KEA63

KE71

KE73

KE73

KEA73

Body material

Carbon steel

Flanged

Screwed

Socket weld

Flanged

Screwed

Flanged

Connections

Screwed

Socket weld

Size range

Stainless steel

SG iron

NPT

EN 1092 PN25 and PN40

EN 1092 PN16, PN25 and PN40

JIS 20 and KS 20

JIS 10, JIS 20, KS 10 and KS 20

ASME 300

ASME 150 and ASME 300

BSP

NPT

EN 1092 PN40

EN 1092 PN16, PN25 and PN40

JIS 20 and KS 20

JIS 10, JIS 20, KS 10 and KS 20

ASME 300

ASME 150 and ASME 300

BSP

EN 1092 PN16 and PN25

JIS 10 and KS 10

ASME 125 and ASME 250

JIS10 and KS10

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

DN15 to DN100

DN125, DN150, DN200, DN250 and DN300

All variants between DN15 to DN100

DN125, DN150, DN200, DN250 and DN300

1⁄2", 3⁄4", 1", 11⁄2", 2", 21⁄2", 3" and 4"

6" to 12"

DN15, DN20, DN25, DN32, DN40 and DN50

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

All variants between DN15 to DN100

DN125, DN150 and DN200

All variants between DN15 to DN100

DN125, DN150 and DN200

1⁄2", 3⁄4", 1", 11⁄2", 2", 21⁄2", 3" and 4"

6" and 8"

DN15, DN20, DN25, DN32, DN40 and DN50

All variants between DN15 to DN200

All variants between DN15 to DN200

1", 11⁄2", 2", 21⁄2", 3", 4", 6" and 8"

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2", 3" and 4"

Page 1 of 29

4.1.12
