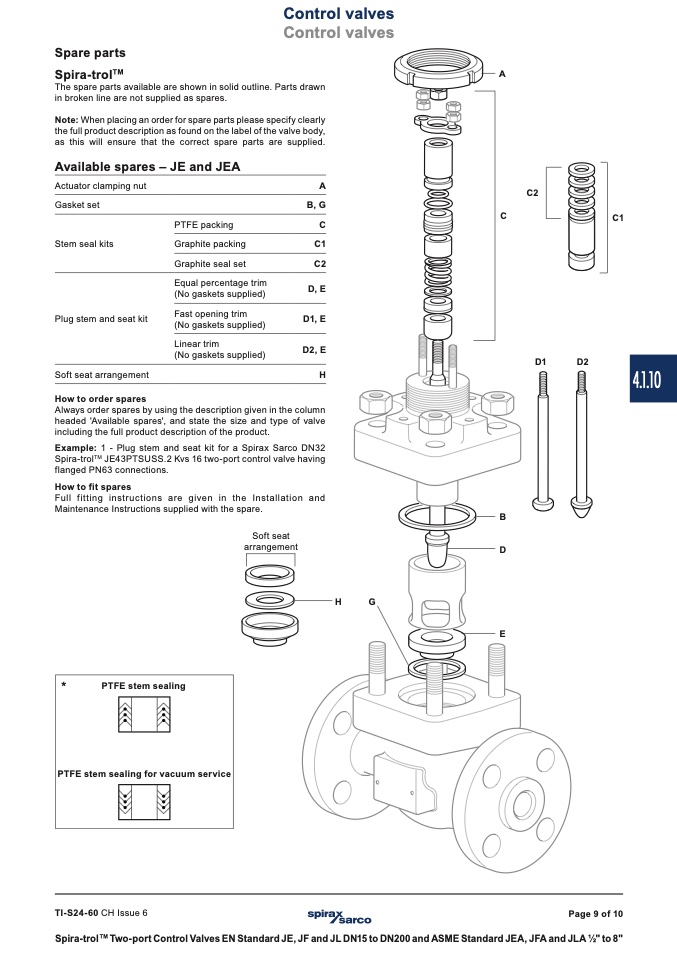

Spare parts

Spira-trol

TM

A

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

Note: When placing an order for spare parts please specify clearly

the full product description as found on the label of the valve body,

as this will ensure that the correct spare parts are supplied.

Available spares – JE and JEA

Actuator clamping nut

Gasket set

Stem seal kits

Plug stem and seat kit

Soft seat arrangement

How to order spares

PTFE packing

Graphite packing

Graphite seal set

Equal percentage trim

(No gaskets supplied)

Fast opening trim

(No gaskets supplied)

Linear trim

(No gaskets supplied)

A

B, G

C

C1

C2

D, E

D1, E

D2, E

H

C2

C

D1

D2

C1

4.1.10

Always order spares by using the description given

headed 'Available spares', and state the size and type of valve

including the full product description of the product.

Example: 1 - Plug stem and seat kit for a Spirax Sarco DN32

Spira-trol

TM

JE43PTSUSS.2 Kvs 16 two-port control valve having

flanged PN63 connections.

How to fit spares

Full fitting instructions are given in the Installation and

Maintenance Instructions supplied with the spare.

*

PTFE stem sealing for vacuum service

PTFE stem sealing

Control valves

Control valves

in the column

Soft seat

arrangement

B

D

E

H

G

TI-S24-60 CH Issue 6

Spira-trol

TM

Two-port Control Valves EN Standard JE, JF and JL DN15 to DN200 and ASME Standard JEA, JFA and JLA 1⁄2" to 8"
