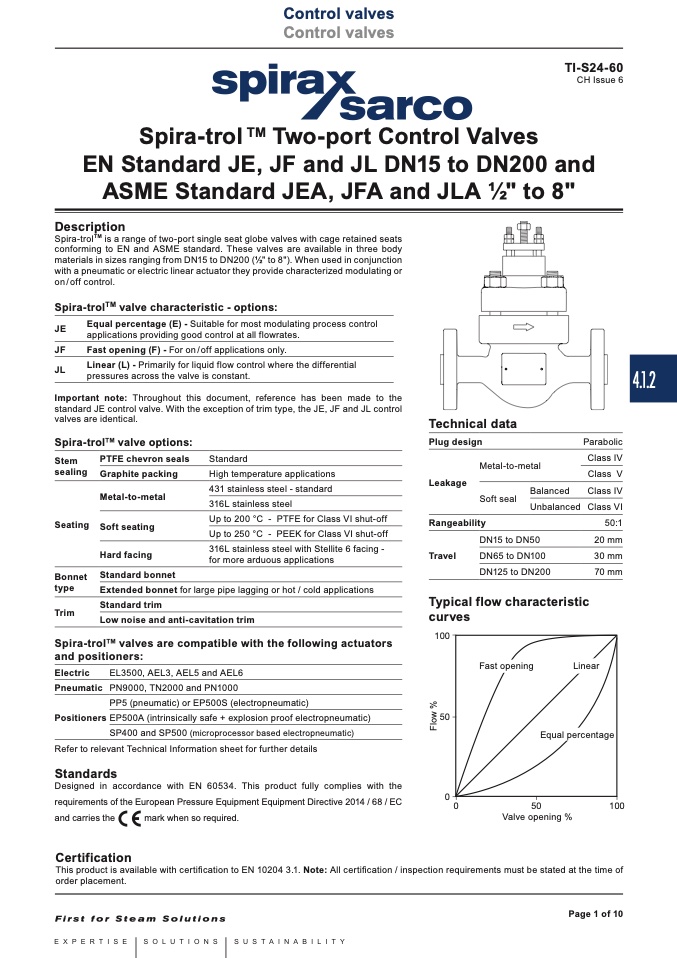

Control valves
Local regulations may restrict the use of this product to below the conditions quoted.
Control valves
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016
TI-S24-60
CH Issue 6
Spira-trol
TM
Two-port Control Valves
EN Standard JE, JF and JL DN15 to DN200 and
ASME Standard JEA, JFA and JLA 1⁄2" to 8"
Description
Spira-trol
TM
is a range of two-port single seat globe valves with cage retained seats
conforming to EN and ASME standard. These valves are available in three body
materials in sizes ranging from DN15 to DN200 (1⁄2" to 8"). When used in conjunction
with a pneumatic or electric linear actuator they provide characterized modulating or
on / off control.
Spira-trol
TM
valve characteristic - options:
Equal percentage (E) - Suitable for most modulating process control
applications providing good control at all flowrates.
JF
Fast opening (F) - For on/ off applications only.
Linear (L) - Primarily for liquid flow control where the differential
pressures across the valve is constant.
Important note: Throughout this document, reference has been made to the
standard JE control valve. With the exception of trim type, the JE, JF and JL control
valves are identical.
JE
JL
Spira-trol
TM
valve options:
PTFE chevron seals
Graphite packing
Metal-to-metal
Technical data
Plug design
Parabolic
Class IV
Class V
Class IV
Class VI
Stem
sealing
Standard
High temperature applications
431 stainless steel - standard
316L stainless steel
Up to 200 °C - PTFE for Class VI shut-off
Up to 250 °C - PEEK for Class VI shut-off
316L stainless steel with Stellite 6 facing -
for more arduous applications
Metal-to-metal
Leakage
Soft seal
Balanced
Unbalanced
Seating Soft seating
Rangeability
50:1
Hard facing
Standard bonnet
DN15 to DN50
Travel
DN65 to DN100
DN125 to DN200
Typical flow characteristic
curves
100
50
20 mm
30 mm
70 mm
Bonnet
type
Trim
Spira-trol
TM
valves are compatible with the following actuators
and positioners:
Electric
EL3500, AEL3, AEL5 and AEL6
Pneumatic PN9000, TN2000 and PN1000
PP5 (pneumatic) or EP500S (electropneumatic)
Positioners EP500A (intrinsically safe + explosion proof electropneumatic)
SP400 and SP500 (microprocessor based electropneumatic)
Refer to relevant Technical Information sheet for further details
Standards
Designed in accordance with EN 60534. This product fully complies with the
requirements of the European Pressure Equipment Equipment Directive 2014 / 68 / EC
and carries the
mark when so required.
Extended bonnet for large pipe lagging or hot / cold applications
Standard trim
Low noise and anti-cavitation trim
Fast
ning
Linear
Equal percentage
ope
0
0
50
100
Valve opening %
Certification
This product is available with certification to EN 10204 3.1. Note: All certification / inspection requirements must be stated at the time of
order placement.
Page 1 of 10
4.1.2
F
l
o
w
%
