Flowmetering

Flowmetering ancillaries

ISO 9001

TI-P170-01

MI Issue 4

Cert. No. LRQ 0963008

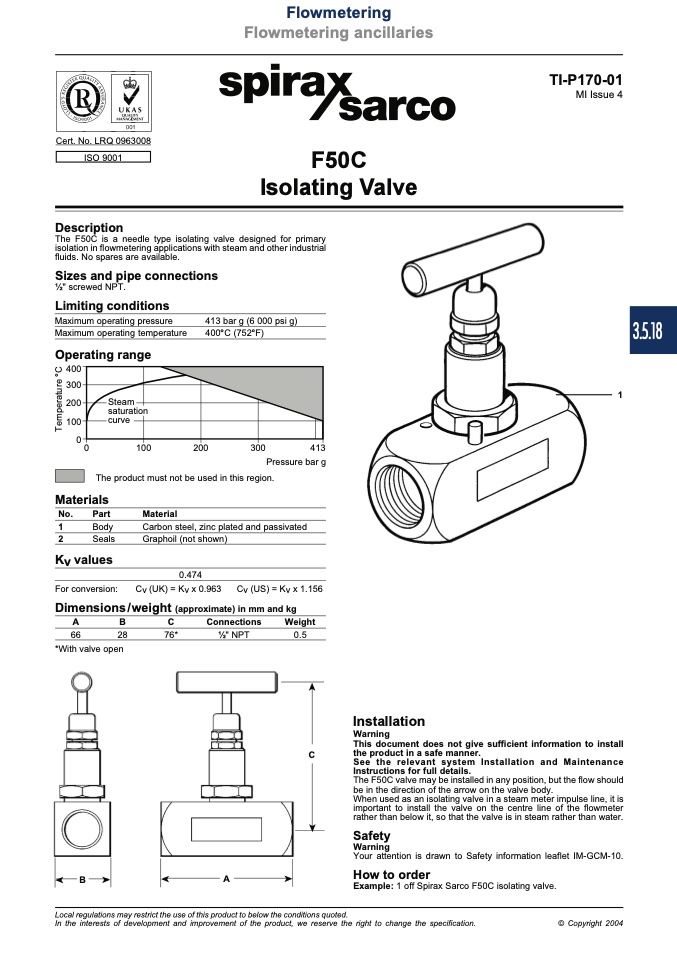

Description

The F50C is a needle type isolating valve designed for primary

isolation in flowmetering applications with steam and other industrial

fluids. No spares are available.

Sizes and pipe connections

1⁄2" screwed NPT.

F50C

Isolating Valve

Limiting conditions

Maximum operating pressure

Maximum operating temperature

Operating range

400

300

200

100

413 bar g (6 000 psi g)

400°C (752°F)

Steam

saturation

curve

0

0

100

200

300

413

Pressure bar g

The product must not be used in this region.

Materials

No.

Part

1

Body

2

Seals

Kv values

For conversion:

Material

Carbon steel, zinc plated and passivated

Graphoil (not shown)

1

0.474

Cv (UK) = Kv x 0.963 Cv (US) = Kv x 1.156

Dimensions/weight (approximate) in mm and kg

A

B

C

66

28

76*

*With valve open

Connections

1⁄2" NPT

Weight

0.5

Installation

C

Warning

This document does not give sufficient information to install

the product in a safe manner.

See the relevant system Installation and Maintenance

Instructions for full details.

The F50C valve may be installed in any position, but the flow should

be in the direction of the arrow on the valve body.

When used as an isolating valve in a steam meter impulse line, it is

important to install the valve on the centre line of the flowmeter

rather than below it, so that the valve is in steam rather than water.

Safety

Warning

Your attention is drawn to Safety information leaflet IM-GCM-10.

How to order

Example: 1 off Spirax Sarco F50C isolating valve.

B

➤

A

➤

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004

3.5.18

➤

T

e

m

p

e

r

a

t

u

r

e

°

C

➤

➤

➤
