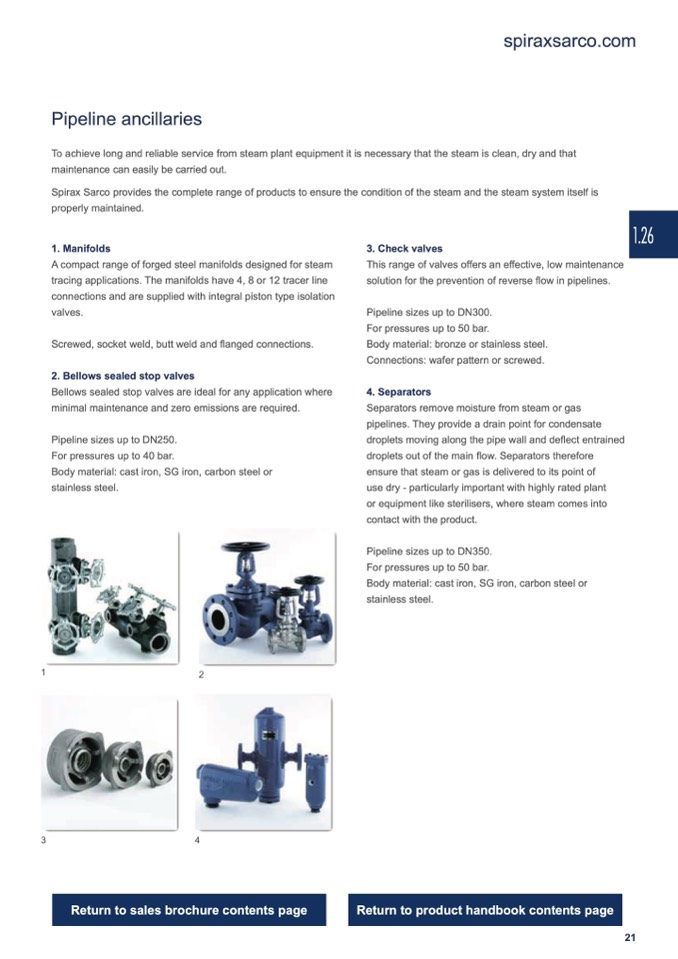

Pipeline ancillaries

To achieve long and reliable service from steam plant equipment it is necessary that the steam is clean, dry and that

maintenance can easily be carried out.

Spirax Sarco provides the complete range of products to ensure the condition of the steam and the steam system itself is

properly maintained.

1. Manifolds

A compact range of forged steel manifolds designed for steam

tracing applications. The manifolds have 4, 8 or 12 tracer line

connections and are supplied with integral piston type isolation

valves.

Screwed, socket weld, butt weld and flanged connections.

2. Bellows sealed stop valves

Bellows sealed stop valves are ideal for any application where

minimal maintenance and zero emissions are required.

Pipeline sizes up to DN250.

For pressures up to 40 bar.

Body material: cast iron, SG iron, carbon steel or

stainless steel.

3. Check valves

This range of valves offers an effective, low maintenance

solution for the prevention of reverse flow in pipelines.

Pipeline sizes up to DN300.

For pressures up to 50 bar.

Body material: bronze or stainless steel.

Connections: wafer pattern or screwed.

4. Separators

Separators remove moisture from steam or gas

pipelines. They provide a drain point for condensate

droplets moving along the pipe wall and deflect entrained

droplets out of the main flow. Separators therefore

ensure that steam or gas is delivered to its point of

use dry - particularly important with highly rated plant

or equipment like sterilisers, where steam comes into

contact with the product.

Pipeline sizes up to DN350.

For pressures up to 50 bar.

Body material: cast iron, SG iron, carbon steel or

stainless steel.
