Description

The Spirax Sarco M750 is an intelligent digital panel display unit

that is fully programmable from the front panel. It can accept inputs

from a wide variety of sensors, and digitally processes and displays

the relevant signal.

The M750 totaliser function enables non-volatile storage of the

integrated total to be maintained within the unit, even after loss

of power.

The M750 is ideally suited as a display unit for use with Spirax

Sarco flowmeters. It can provide an indication of flowrate and

3.5.9

totalised flow for Gilflo, ILVA, DIVA, orifice plates and vortex

flowmeters as well as providing a 24 Vdc loop power supply

where required.

The M750 has Modbus RTU protocol using RS485 serial

communications.

Up to two 'Option Pods' can be fitted to the M750 to provide the

following functions:

- An isolated 4-20 mA retransmission pod.

- A pod with two normally-open relays.

How to specify:

It is possible to have one or two relay pods, but only one 4 - 20 mA

retransmission pod. The Option Pods can be selected to operate

on Process Variable (Rate), or Total.

Technical data

See overleaf.

Weight

230 grams (0.5 lbs)

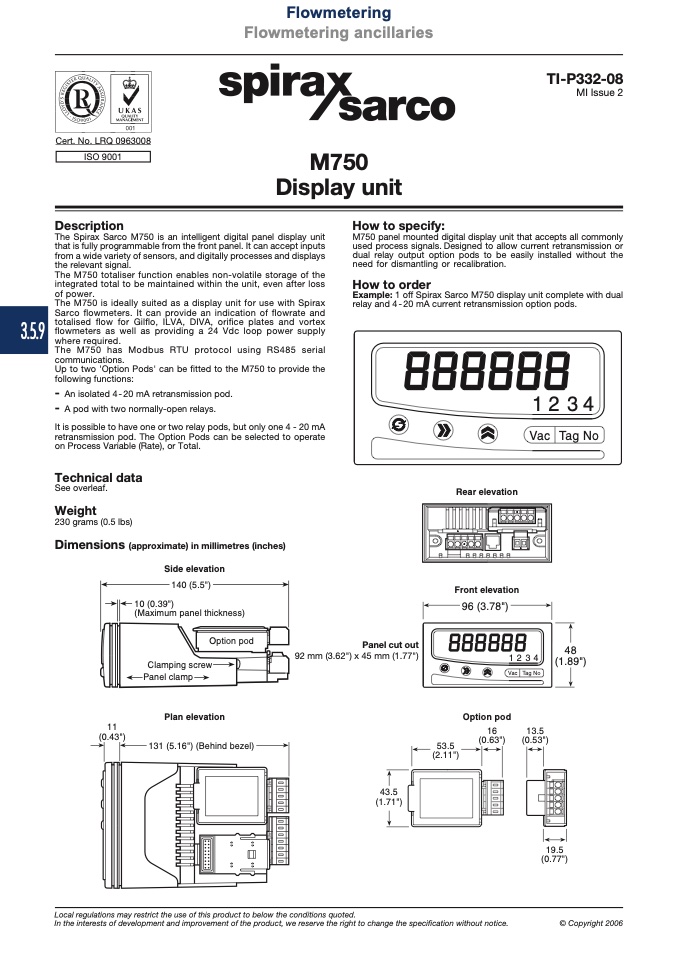

Dimensions (approximate) in millimetres (inches)

��

Panel cut out

��

Flowmetering

Flowmetering ancillaries

M750

Display unit

TI-P332-08

MI Issue 2

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

��

M750 panel mounted digital display unit that accepts all commonly

used process signals. Designed to allow current retransmission or

dual relay output option pods to be easily installed without the

need for dismantling or recalibration.

How to order

Example: 1 off Spirax Sarco M750 display unit complete with dual

relay and 4-20 mA current retransmission option pods.

��

92 mm (3.62") x 45 mm (1.77")

��
