Flowmetering

Flowmetering ancillaries

M850

3.5.7

M850

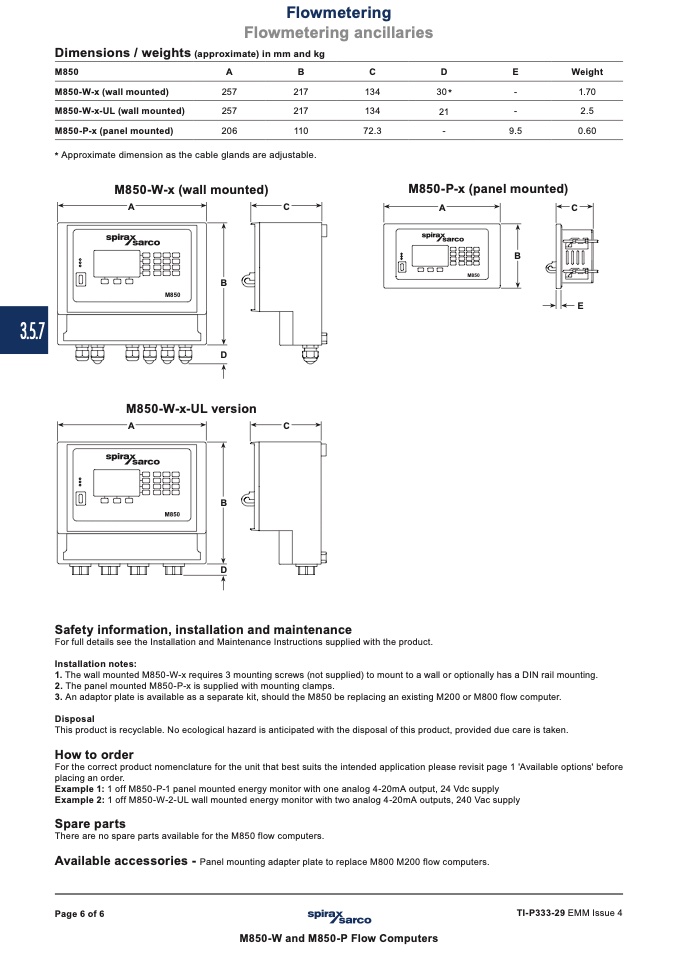

Dimensions / weights (approximate) in mm and kg

M850

M850-W-x (wall mounted)

M850-W-x-UL (wall mounted)

M850-P-x (panel mounted)

A

B

257

217

257

217

206

110

C

D

134

30 *

134

21

72.3

-

E

Weight

-

1.70

-

2.5

9.5

0.60

* Approximate dimension as the cable glands are adjustable.

M850-W-x (wall mounted)

M850-P-x (panel mounted)

A

C

A

C

B

D

M850-W-x-UL version

A

C

B

D

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions supplied with the product.

B

M850

E

Installation notes:

1. The wall mounted M850-W-x requires 3 mounting screws (not supplied) to mount to a wall or optionally has a DIN rail mounting.

2. The panel mounted M850-P-x is supplied with mounting clamps.

3. An adaptor plate is available as a separate kit, should the M850 be replacing an existing M200 or M800 flow computer.

Disposal

This product is recyclable. No ecological hazard is anticipated with the disposal of this product, provided due care is taken.

How to order

For the correct product nomenclature for the unit that best suits the intended application please revisit page 1 'Available options' before

placing an order.

Example 1: 1 off M850-P-1 panel mounted energy monitor with one analog 4-20mA output, 24 Vdc supply

Example 2: 1 off M850-W-2-UL wall mounted energy monitor with two analog 4-20mA outputs, 240 Vac supply

Spare parts

There are no spare parts available for the M850 flow computers.

Available accessories -

Panel mounting adapter plate to replace M800 M200 flow computers.

Page 6 of 6

TI-P333-29 EMM Issue 4

M850-W and M850-P Flow Computers
