Flowmetering

Local regulations may restrict the use of this product to below the conditions quoted.

Flowmetering ancillaries

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P333-29

EMM Issue 4

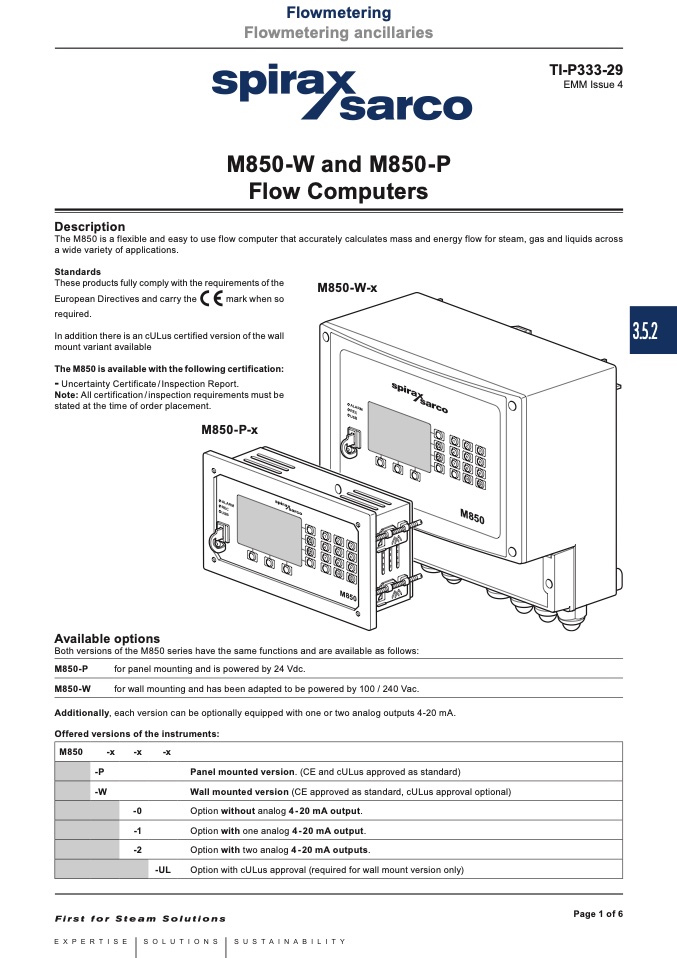

M850-W and M850-P

Flow Computers

Description

The M850 is a flexible and easy to use flow computer that accurately calculates mass and energy flow for steam, gas and liquids across

a wide variety of applications.

Standards

These products fully comply with the requirements of the

European Directives and carry the

mark when so

required.

In addition there is an cULus certified version of the wall

mount variant available

The M850 is available with the following certification:

-

Uncertainty Certificate / Inspection Report.

Note: All certification / inspection requirements must be

stated at the time of order placement.

M850-P-x

M850-W-x

Available options

Both versions of the M850 series have the same functions and are available as follows:

M850-P

for panel mounting and is powered by 24 Vdc.

M850-W

for wall mounting and has been adapted to be powered by 100 / 240 Vac.

Additionally, each version can be optionally equipped with one or two analog outputs 4-20 mA.

Offered versions of the instruments:

M850

-x

-x

-x

-P

Panel mounted version. (CE and cULus approved as standard)

-W

Wall mounted version (CE approved as standard, cULus approval optional)

-0

Option without analog 4 - 20 mA output.

-1

Option with one analog 4 - 20 mA output.

-2

Option with two analog 4 - 20 mA outputs.

-UL

Option with cULus approval (required for wall mount version only)

Page 1 of 6

3.5.2

��������

����������

������

�

�

�

�

��

������

�

�

�

�

��

����

����������

������

�

�

�

�

��

������

�

�

�

�

��

��������

�

�

�

�

��

�

�

�

�

��

����
