Flowmeter type/fluid

Turndown

Water

and

Condensate

Viscous

liquids

Acids

and

chemicals

Hydro-

carbons

Gas Steam Sizes

Differential Pressure

Variable Area

Up to 100:1

  

DN50 - DN400

Target Variable Area

with

Integral flow computer

Up to 50:1



Saturated

steam only

DN50 - DN100

Target Fixed Area

with

Integral flow computer

Up to 10:1



Saturated

steam only

DN25 - DN50

Ultrasonic

Transit Time

with

Integral flow computer

Up to 40:1



 

DN15 - DN2000

Vortex

with

Integral flow computer

Up to 20:1

    

DN25 - DN300

Turbine Insertion

with

Integral flow computer

Up to 25:1

   

DN80 - DN2000

Electromagnetic

with

Integral flow computer

Up to 4:1

WirelessHART

TM

and

TEG heat scavenging

power supply

Up to 50:1



Saturated

steam only

DN50 - DN100

3.1.1

Flowmetering

Flowmetering selection guide and UKAS accreditation

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2014

TI-GMI-19

MI Issue 1

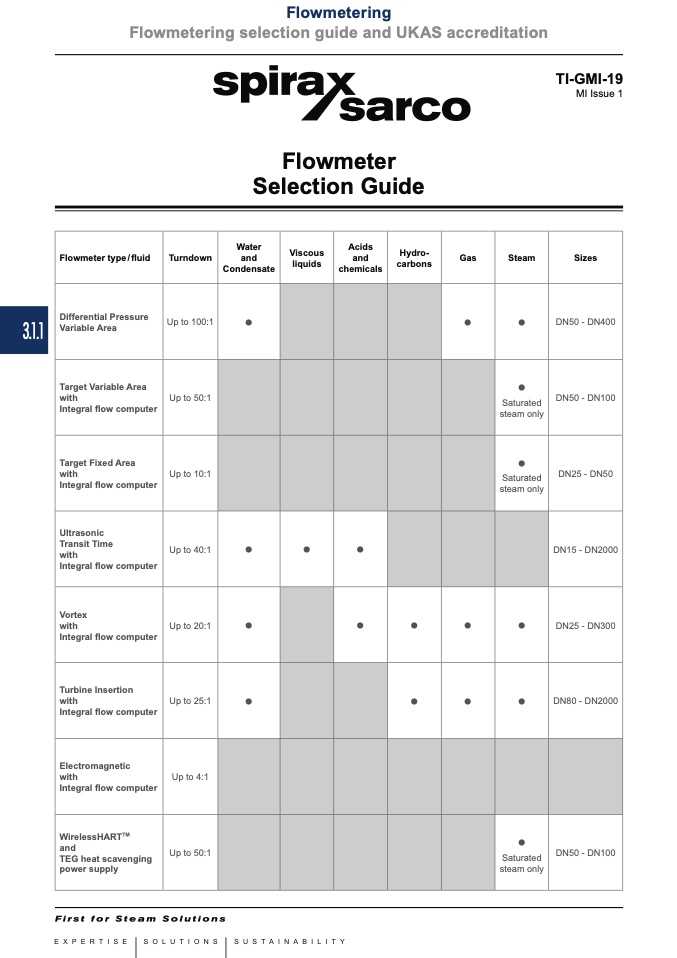

Flowmeter

Selection Guide
