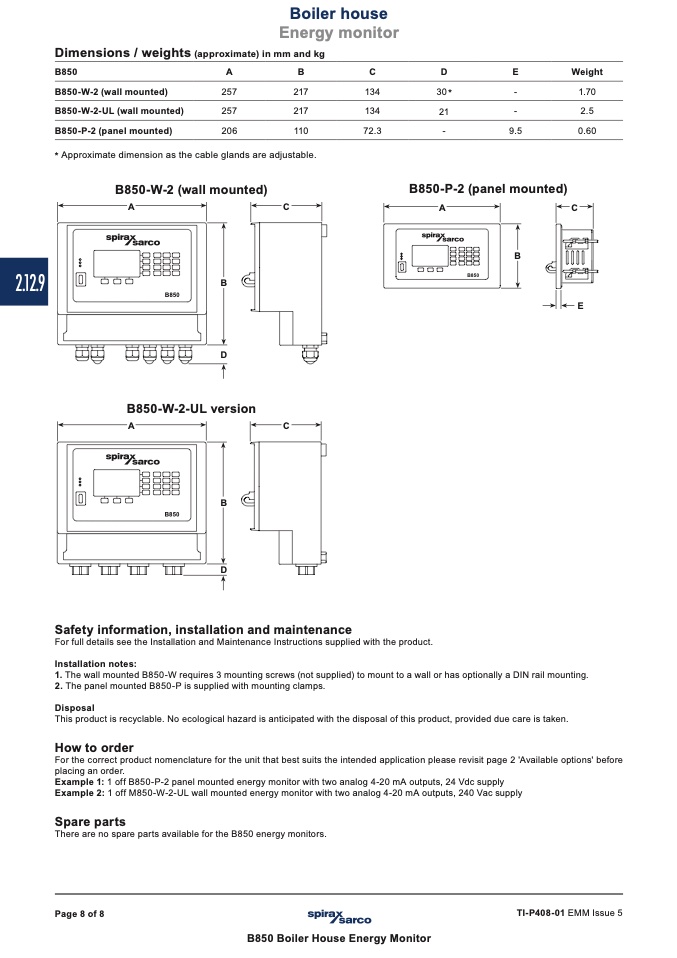

Dimensions / weights (approximate) in mm and kg

B850

B850-W-2 (wall mounted)

B850-W-2-UL (wall mounted)

B850-P-2 (panel mounted)

A

B

257

217

257

217

206

110

C

D

134

30 *

134

21

72.3

-

E

Weight

-

1.70

-

2.5

9.5

0.60

* Approximate dimension as the cable glands are adjustable.

B850-W-2 (wall mounted)

B850-P-2 (panel mounted)

A

C

A

C

B

D

B850-W-2-UL version

A

C

B

D

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions supplied with the product.

B

B850

E

Installation notes:

1. The wall mounted B850-W requires 3 mounting screws (not supplied) to mount to a wall or has optionally a DIN rail mounting.

2. The panel mounted B850-P is supplied with mounting clamps.

Disposal

This product is recyclable. No ecological hazard is anticipated with the disposal of this product, provided due care is taken.

How to order

For the correct product nomenclature for the unit that best suits the intended application please revisit page 2 'Available options' before

placing an order.

Example 1: 1 off B850-P-2 panel mounted energy monitor with two analog 4-20 mA outputs, 24 Vdc supply

Example 2: 1 off M850-W-2-UL wall mounted energy monitor with two analog 4-20 mA outputs, 240 Vac supply

Spare parts

There are no spare parts available for the B850 energy monitors.
