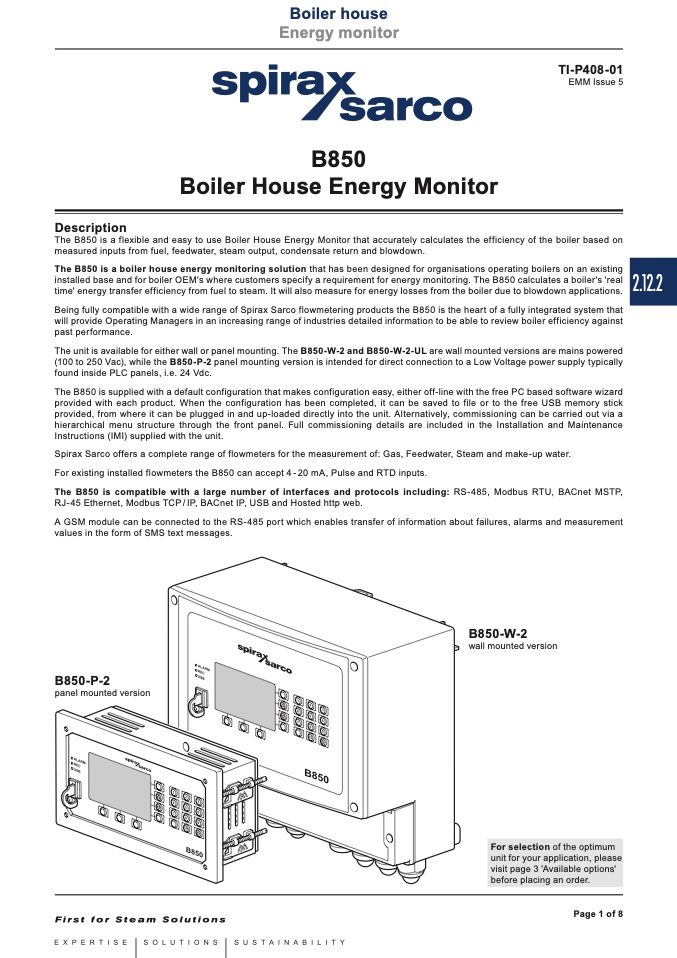

B850

The B850 is a flexible and easy to use Boiler House Energy Monitor that accurately calculates the efficiency of the boiler based on

measured inputs from fuel, feedwater, steam output, condensate return and blowdown.

The B850 is a boiler house energy monitoring solution that has been designed for organisations operating boilers on an existing

installed base and for boiler OEM's where customers specify a requirement for energy monitoring. The B850 calculates a boiler's 'real

time' energy transfer efficiency from fuel to steam. It will also measure for energy losses from the boiler due to blowdown applications.

Being fully compatible with a wide range of Spirax Sarco flowmetering products the B850 is the heart of a fully integrated system that

will provide Operating Managers in an increasing range of industries detailed information to be able to review boiler efficiency against

past performance.

The unit is available for either wall or panel mounting. The B850-W-2 and B850-W-2-UL are wall mounted versions are mains powered

(100 to 250 Vac), while the B850-P-2 panel mounting version is intended for direct connection to a Low Voltage power supply typically

found inside PLC panels, i.e. 24 Vdc.

The B850 is supplied with a default configuration that makes configuration easy, either off-line with the free PC based software wizard

provided with each product. When the configuration has been completed, it can be saved to file or to the free USB memory stick

provided, from where it can be plugged in and up-loaded directly into the unit. Alternatively, commissioning can be carried out via a

hierarchical menu structure through the front panel. Full commissioning details are included in the Installation and Maintenance

Instructions (IMI) supplied with the unit.

Spirax Sarco offers a complete range of flowmeters for the measurement of: Gas, Feedwater, Steam and make-up water.

For existing installed flowmeters the B850 can accept 4-20 mA, Pulse and RTD inputs.

The B850 is compatible with a large number of interfaces and protocols including: RS-485, Modbus RTU, BACnet MSTP,

RJ-45 Ethernet, Modbus TCP / IP, BACnet IP, USB and Hosted http web.

A GSM module can be connected to the RS-485 port which enables transfer of information about failures, alarms and measurement

values in the form of SMS text messages.

wall mounted version

panel mounted version

For selection of the optimum

unit for your application, please

visit page 3 'Available options'

before placing an order.
