Boiler house

Bottom blowdown systems

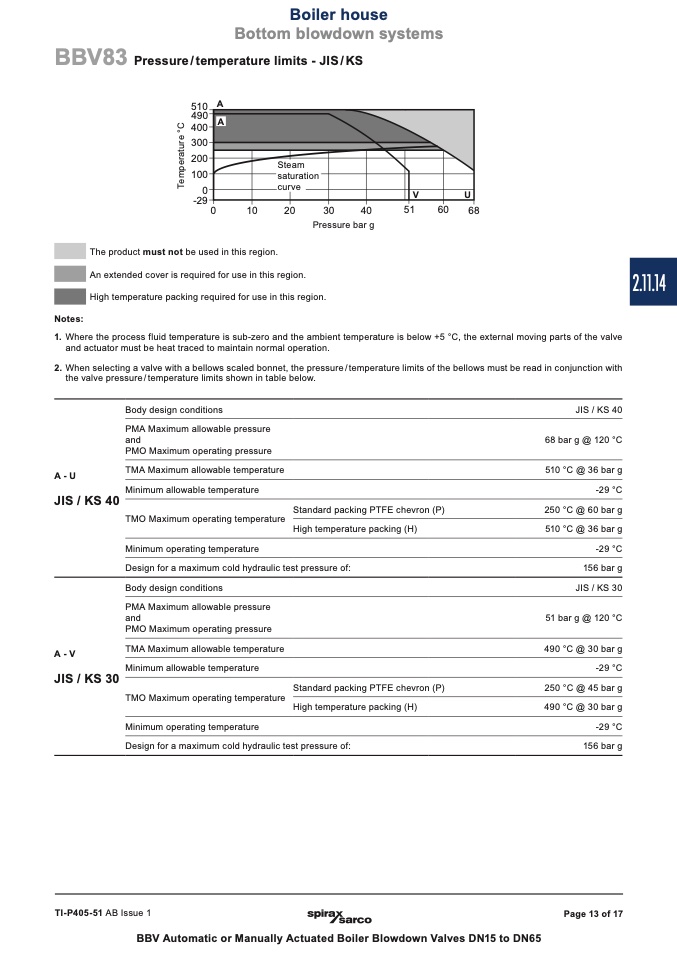

BBV83

Pressure / temperature limits - JIS / KS

�� A

��

Pressure bar g

The product must not be used in this region.

An extended cover is required for use in this region.

High temperature packing required for use in this region.

Steam

sat

curve

urat ion

Notes:

��

1. Where the process fluid temperature is sub-zero and the ambient temperature is below +5 °C, the external moving parts of the valve

��

and actuator must be heat traced

��

to maintain normal operation.

��

2. When selecting a valve with a bellows scaled bonnet, the pressure / temperature limits of the bellows must be read in conjunction with

the valve pressure / temperature limits shown in table below.

Body design conditions

PMA Maximum allowable pressure

and

PMO Maximum operating pressure

TMO Maximum operating temperature

Minimum operating temperature

JIS / KS 40

68 bar g @ 120 °C

510 °C @ 36 bar g

-29 °C

250 °C @ 60 bar g

510 °C @ 36 bar g

-29 °C

156 bar g

JIS / KS 30

51 bar g @ 120 °C

490 °C @ 30 bar g

-29 °C

250 °C @ 45 bar g

490 °C @ 30 bar g

-29 °C

156 bar g

��

TMA Maximum allowable temperature

A-U

JIS / KS 40

Minimum allowable temperature

Standard packing PTFE chevron (P)

High temperature packing (H)

Design for a maximum cold hydraulic test pressure of:

Body design conditions

PMA Maximum allowable pressure

and

PMO Maximum operating pressure

TMO Maximum operating temperature

Minimum operating temperature

TMA Maximum allowable temperature

A-V

JIS / KS 30

Minimum allowable temperature

Standard packing PTFE chevron (P)

High temperature packing (H)

Design for a maximum cold hydraulic test pressure of:

TI-P405-51 AB Issue 1

BBV Automatic or Manually Actuated Boiler Blowdown Valves DN15 to DN65

Page 13 of 17

Boiler house

Bottom blowdown systems

BBV83

Pressure / temperature limits - JIS / KS

JIS / KS 40

JIS / KS 30

BBV Automatic or Manually Actuated Boiler Blowdown Valves DN15 to DN65

2.11.14
