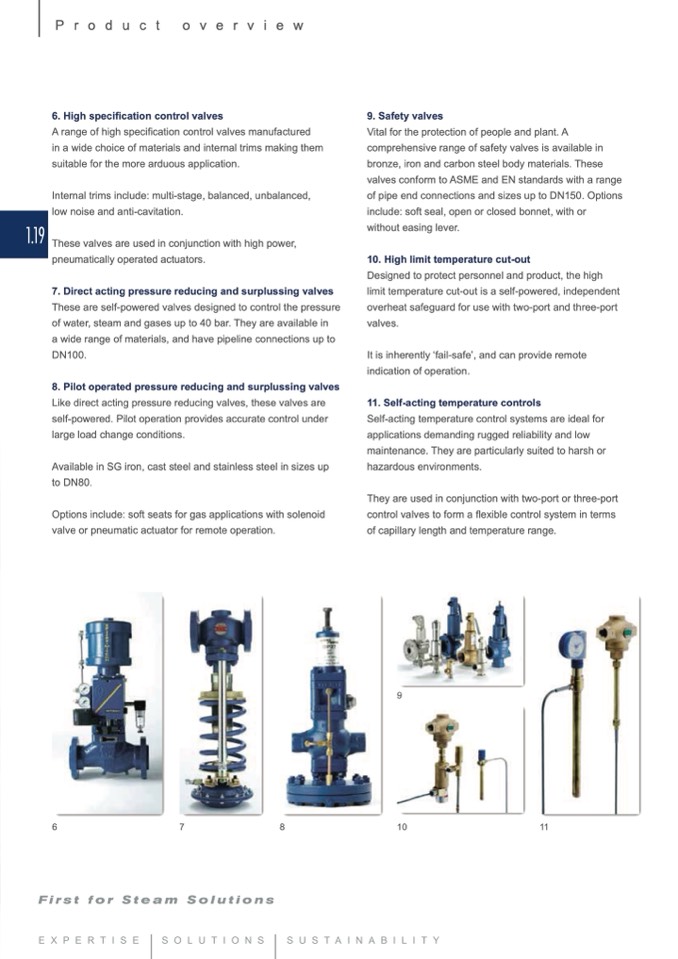

Product overview
6. High specification control valves
A range of high specification control valves manufactured
in a wide choice of materials and internal trims making them
suitable for the more arduous application.
Internal trims include: multi-stage, balanced, unbalanced,
low noise and anti-cavitation.
These valves are used in conjunction with high power,
pneumatically operated actuators.
7. Direct acting pressure reducing and surplussing valves
These are self-powered valves designed to control the pressure
of water, steam and gases up to 40 bar. They are available in
a wide range of materials, and have pipeline connections up to
DN100.
8. Pilot operated pressure reducing and surplussing valves
Like direct acting pressure reducing valves, these valves are
self-powered. Pilot operation provides accurate control under
large load change conditions.
Available in SG iron, cast steel and stainless steel in sizes up
to DN80.
Options include: soft seats for gas applications with solenoid
valve or pneumatic actuator for remote operation.
6
7
8
10
11
9. Safety valves
Vital for the protection of people and plant. A
comprehensive range of safety valves is available in
bronze, iron and carbon steel body materials. These
valves conform to ASME and EN standards with a range
of pipe end connections and sizes up to DN150. Options
include: soft seal, open or closed bonnet, with or
without easing lever.
10. High limit temperature cut-out
Designed to protect personnel and product, the high
limit temperature cut-out is a self-powered, independent
overheat safeguard for use with two-port and three-port
valves.
It is inherently ‘fail-safe’, and can provide remote
indication of operation.
11. Self-acting temperature controls
Self-acting temperature control systems are ideal for
applications demanding rugged reliability and low
maintenance. They are particularly suited to harsh or
hazardous environments.
They are used in conjunction with two-port or three-port
control valves to form a flexible control system in terms
of capillary length and temperature range.
