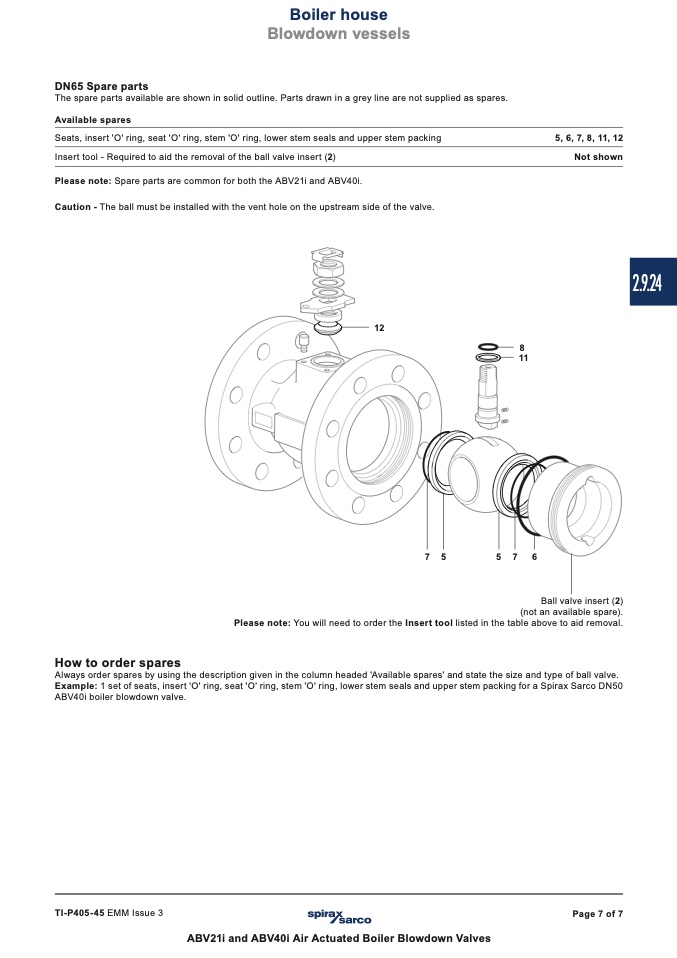

DN65 Spare parts

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packing

Insert tool - Required to aid the removal of the ball valve insert (2)

Please note: Spare parts are common for both the ABV21i and ABV40i.

Caution - The ball must be installed with the vent hole on the upstream side of the valve.

12

5, 6, 7, 8, 11, 12

Not shown

1

8

1

75

5

7

6

How to order spares

Ball valve insert (2)

(not an available spare).

Please note: You will need to order the Insert tool listed in the table above to aid removal.

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packing for a Spirax Sarco DN50

ABV40i boiler blowdown valve.
