Spare parts

Boiler house

Blowdown vessels

The spare parts available are detailed below. No other parts are available as spares.

Please note: There are no spares available for the switch box.

To ensure correct operation and maintain the warranty, use only Spirax Sarco original parts.

Before actioning any maintenance programme observe the 'Safety Information' in Section 1 of IM-P405-46 supplied with the unit.

Spare parts for the BVA300S /14

The available spare parts for the BVA300S/14 are listed on pages 6 and 7.

No other parts are available as spares.

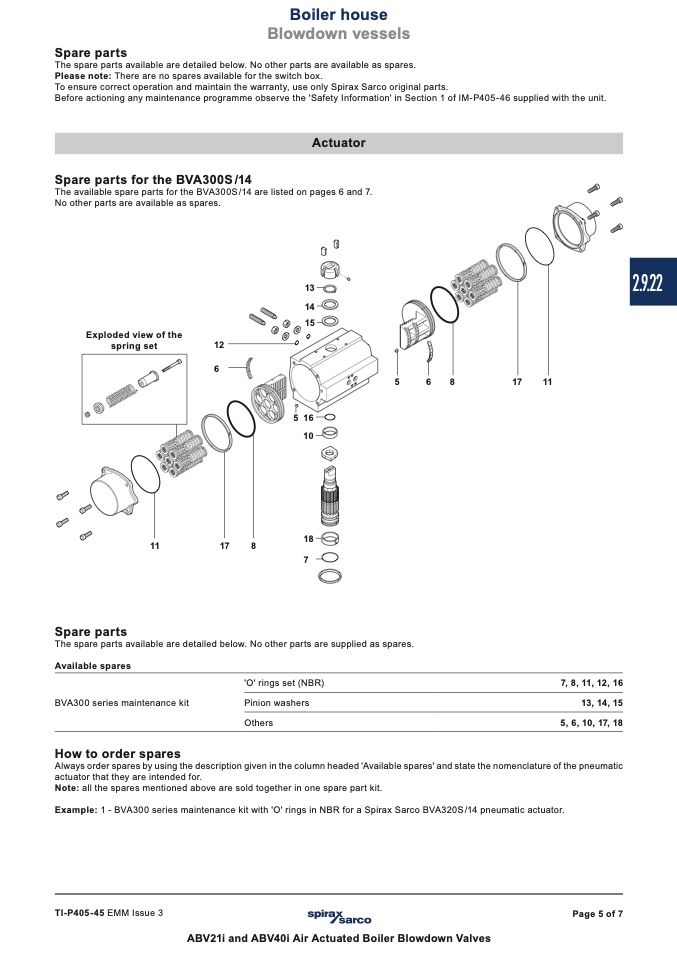

Exploded view of the

spring set

12

Spare parts

11

1

7

8

6

13

14

15

5 16

10

18

7

2.9.22

Actuator

The spare parts available are detailed below. No other parts are supplied as spares.

Available spares

'O' rings set (NBR)

BVA300 series maintenance kit

Pinion washers

Others

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the nomenclature of the pneumatic

actuator that they are intended for.

Note: all the spares mentioned above are sold together in one spare part kit.

Example: 1 - BVA300 series maintenance kit with 'O' rings in NBR for a Spirax Sarco BVA320S/14 pneumatic actuator.

TI-P405-45 EMM Issue 3

Page 5 of 7
