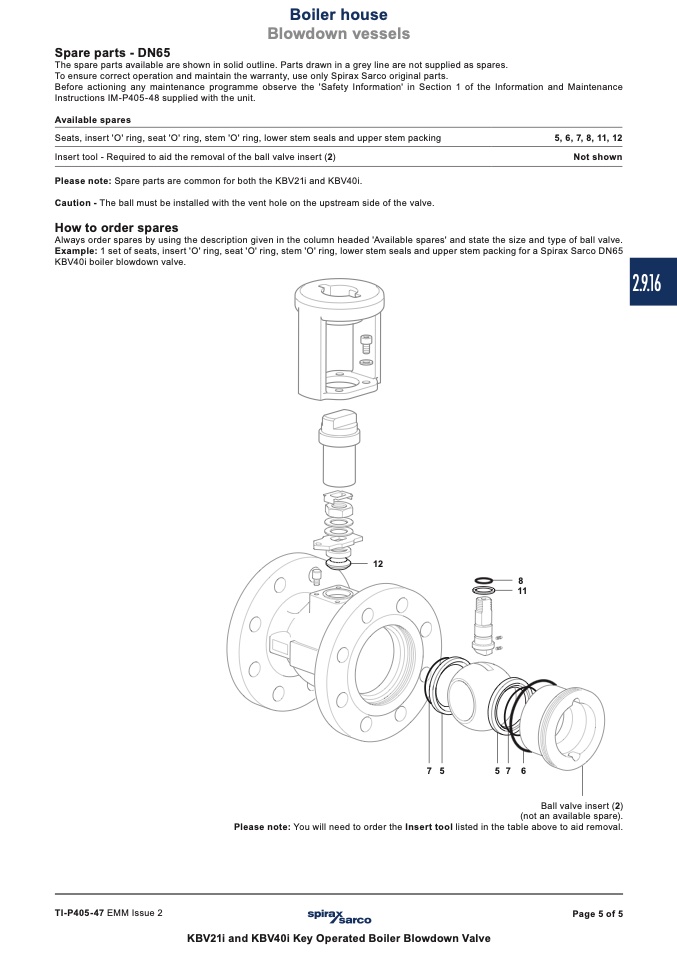

Spare parts - DN65

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

To ensure correct operation and maintain the warranty, use only Spirax Sarco original parts.

Before actioning any maintenance programme observe the 'Safety Information' in Section 1 of the Information and Maintenance

Instructions IM-P405-48 supplied with the unit.

Available spares

Seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packing

Insert tool - Required to aid the removal of the ball valve insert (2)

Please note: Spare parts are common for both the KBV21i and KBV40i.

Caution - The ball must be installed with the vent hole on the upstream side of the valve.

How to order spares

5, 6, 7, 8, 11, 12

Not shown

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packing for a Spirax Sarco DN65

KBV40i boiler blowdown valve.

12

1

8

1

75

576

(not an available spare).

TI-P405-47 EMM Issue 2

Page 5 of 5

Ball valve insert (2)

Please note: You will need to order the Insert tool listed in the table above to aid removal.
