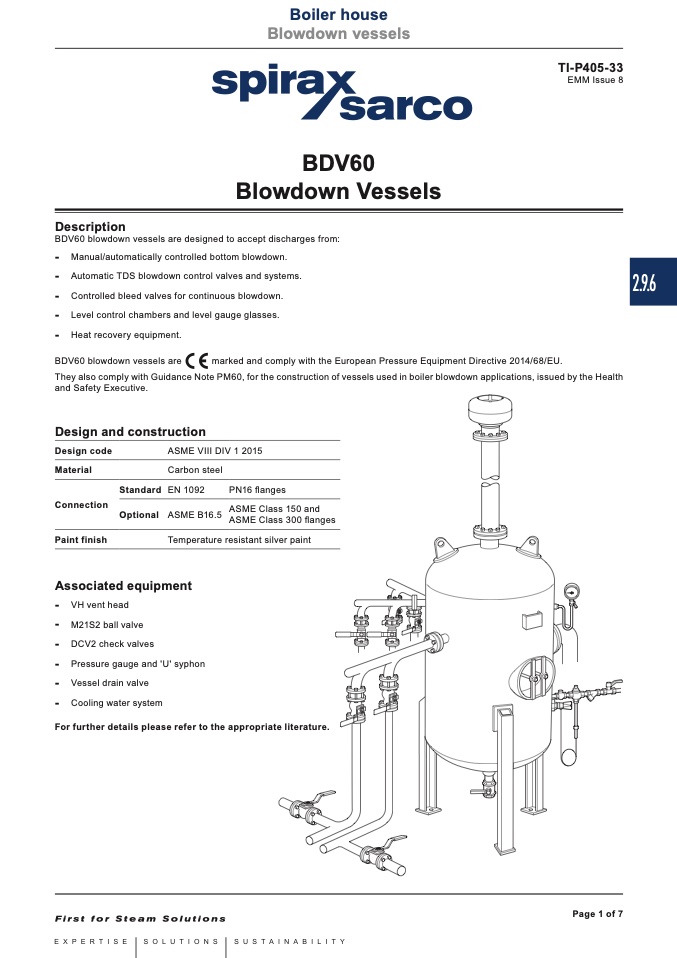

Description

BDV60 blowdown vessels are designed to accept discharges from:

-

Manual/automatically controlled bottom blowdown.

-

Automatic TDS blowdown control valves and systems.

-

Controlled bleed valves for continuous blowdown.

-

Level control chambers and level gauge glasses.

-

Heat recovery equipment.

2.9.6

Boiler house

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Blowdown vessels

© Copyright 2017

BDV60

Blowdown Vessels

BDV60 blowdown vessels are

marked and comply with the European Pressure Equipment Directive 2014/68/EU.

They also comply with Guidance Note PM60, for the construction of vessels used in boiler blowdown applications, issued by the Health

and Safety Executive.

Design and construction

Design code

Material

Standard

Connection

Optional

Paint finish

ASME VIII DIV 1 2015

Carbon steel

EN 1092

PN16 flanges

ASME B16.5

ASME Class 150 and

ASME Class 300 flanges

Temperature resistant silver paint

Associated equipment

-

VH vent head

-

M21S2 ball valve

-

DCV2 check valves

-

Pressure gauge and 'U' syphon

-

Vessel drain valve

-

Cooling water system

For further details please refer to the appropriate literature.

TI-P405-33

EMM Issue 8

Page 1 of 7
