COAL
TYPE
CALORIFIC VALUE (Btu/lb)
ANTHRACITE
14,000
GOOD BITUMINOUS COAL
13,000
GOOD AVERAGE
INDUSTRIAL COAL
12,000
POOR AVERAGE
INDUSTRIAL COAL
9,000
OIL
GRADE
VISCOSITY
SPECIFIC
GRAVITY
CALORIFIC
VALUE (Btu/kg)
cSt
RED. 1
SECS
GAS OIL
4
35
0.835
19,600
LIGHT
50
210
0.935
18,700
MEDIUM
230
950
0.95
18,500
HEAVY
900
3500
0.97
18,300
GAS
100,000 Btu/Therm
11.5.3
General information
Useful calculation data
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2013
AI-GAB-04
AB Issue 3

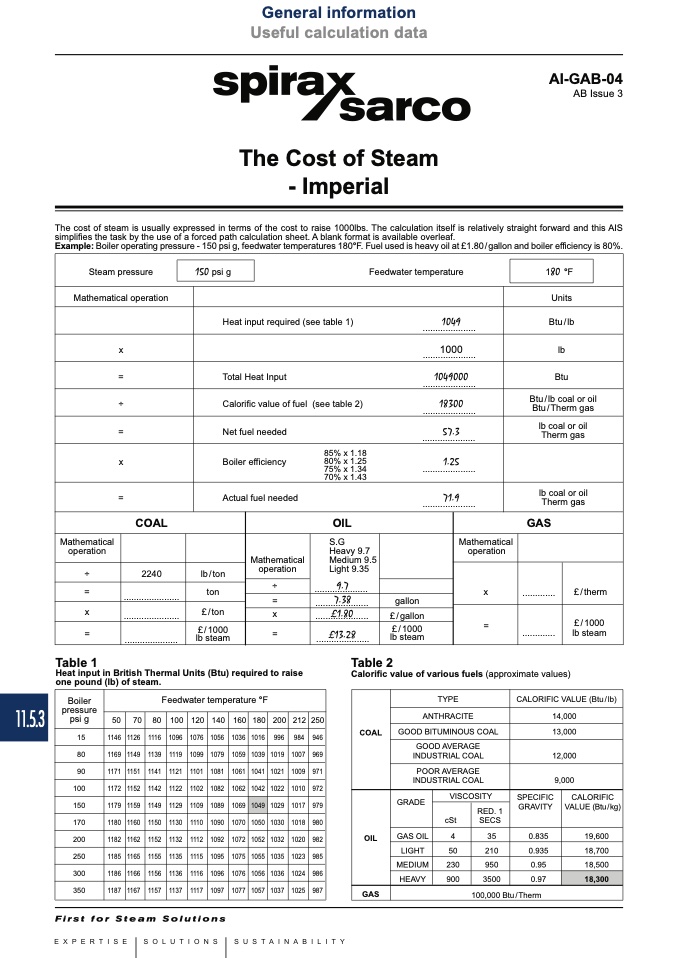

The Cost of Steam
- Imperial
The cost of steam is usually expressed in terms of the cost to raise 1000lbs. The calculation itself is relatively straight forward and this AIS
simplifies the task by the use of a forced path calculation sheet. A blank format is available overleaf.
Example: Boiler operating pressure - 150 psi g, feedwater temperatures 180°F. Fuel used is heavy oil at £1.80 / gallon and boiler efficiency is 80%.
Table 1
Table 2
Heat input in British Thermal Units (Btu) required to raise
Calorific value of various fuels (approximate values)
one pound (lb) of steam.
