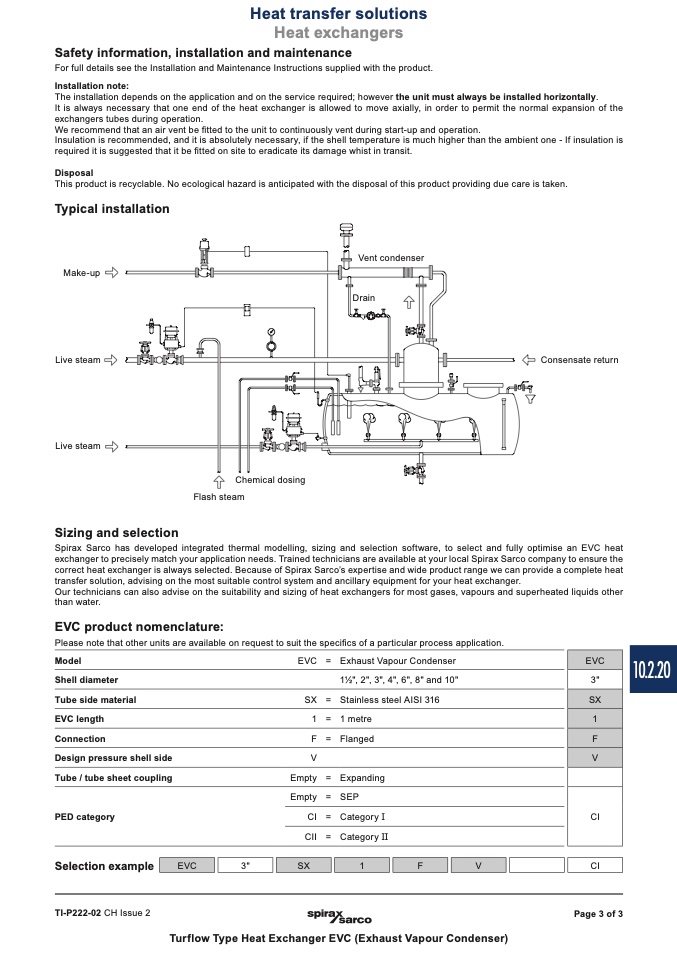

Heat transfer solutions

Heat exchangers

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions supplied with the product.

Installation note:

The installation depends on the application and on the service required; however the unit must always be installed horizontally.

It is always necessary that one end of the heat exchanger is allowed to move axially, in order to permit the normal expansion of the

exchangers tubes during operation.

We recommend that an air vent be fitted to the unit to continuously vent during start-up and operation.

Insulation is recommended, and it is absolutely necessary, if the shell temperature is much higher than the ambient one - If insulation is

required it is suggested that it be fitted on site to eradicate its damage whist in transit.

Disposal

This product is recyclable. No ecological hazard is anticipated with the disposal of this product providing due care is taken.

Typical installation

Make-up

Live steam

Live steam

Sizing and selection

Vent condenser

Drain

Chemical dosing

Flash steam

Spirax Sarco has developed integrated thermal modelling, sizing and selection software, to select and fully optimise an EVC heat

exchanger to precisely match your application needs. Trained technicians are available at your local Spirax Sarco company to ensure the

correct heat exchanger is always selected. Because of Spirax Sarco’s expertise and wide product range we can provide a complete heat

transfer solution, advising on the most suitable control system and ancillary equipment for your heat exchanger.

Our technicians can also advise on the suitability and sizing of heat exchangers for most gases, vapours and superheated liquids other

than water.

EVC product nomenclature:

Please note that other units are available on request to suit the specifics of a particular process application.

Model

EVC = Exhaust Vapour Condenser

Shell diameter

11⁄2", 2", 3", 4", 6", 8" and 10"

Tube side material

SX = Stainless steel AISI 316

EVC length

1 = 1 metre

EVC

3"

SX

1

F

V

CI

CI

10.2.20

Connection

F = Flanged

Design pressure shell side

V

Tube / tube sheet coupling

Empty = Expanding

Empty = SEP

PED category

CI = Category I

CII = Category II

Selection example

EVC

3"

SX

1

F

V

TI-P222-02 CH Issue 2

Page 3 of 3

Turflow Type Heat Exchanger EVC (Exhaust Vapour Condenser)

Consensate return
