Heat transfer solutions
Local regulations may restrict the use of this product to below the conditions quoted.
Heat exchangers
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016
10.2.13
TI-P481-12
CH Issue 1

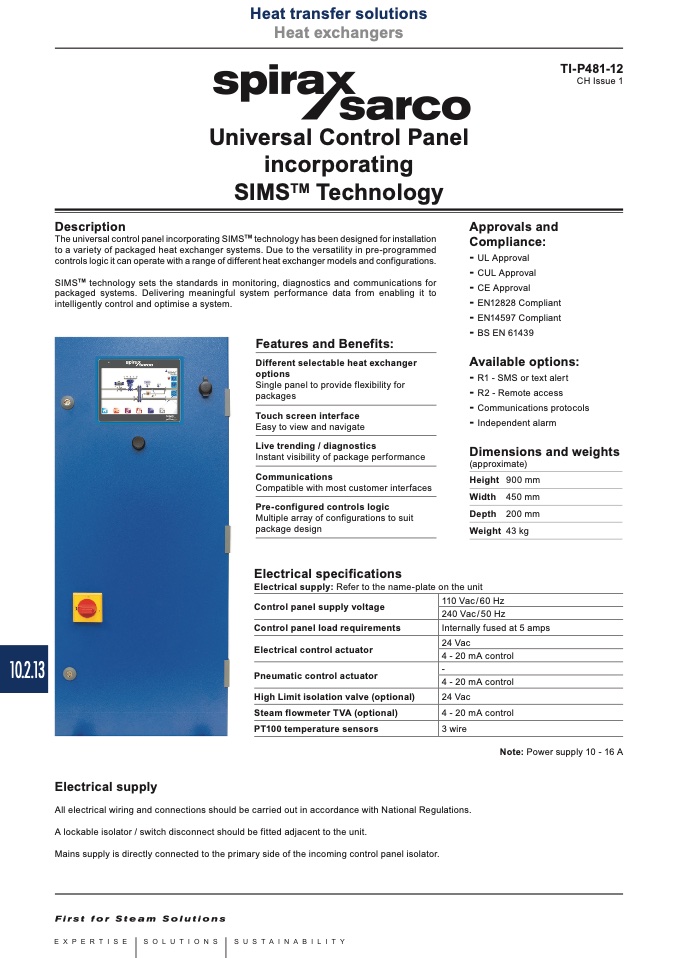

Universal Control Panel
incorporating
SIMS
TM
Technology
Description
The universal control panel incorporating SIMS
TM
technology has been designed for installation
to a variety of packaged heat exchanger systems. Due to the versatility in pre-programmed
controls logic it can operate with a range of different heat exchanger models and configurations.
SIMS
TM
technology sets the standards in monitoring, diagnostics and communications for
packaged systems. Delivering meaningful system performance data from enabling it to
intelligently control and optimise a system.
Approvals and
Compliance:
-
UL Approval
-
CUL Approval
-
CE Approval
-
EN12828 Compliant
-
EN14597 Compliant
-
BS EN 61439
Features and Benefits:
Different selectable heat exchanger
options
Single panel to provide flexibility for
packages
Touch screen interface
Easy to view and navigate
Live trending / diagnostics
Instant visibility of package performance
Communications
Compatible with most customer interfaces
Pre-configured controls logic
Multiple array of configurations to suit
package design
Electrical specifications
Electrical supply: Refer to the name-plate
Control panel supply voltage
Control panel load requirements
Electrical control actuator
Pneumatic control actuator
High Limit isolation valve (optional)
Steam flowmeter TVA (optional)
PT100 temperature sensors
Available options:
-
R1 - SMS or text alert
-
R2 - Remote access
-
Communications protocols
-
Independent alarm
Dimensions and weights
(approximate)
Height 900 mm
Width 450 mm
Depth 200 mm
Weight 43 kg
on the unit
110 Vac/60 Hz
240 Vac/50 Hz
Internally fused at 5 amps
24 Vac
4 - 20 mA control
-
4 - 20 mA control
24 Vac
4 - 20 mA control
3 wire
Electrical supply
All electrical wiring and connections should be carried out in accordance with National Regulations.
A lockable isolator / switch disconnect should be fitted adjacent to the unit.
Mains supply is directly connected to the primary side of the incoming control panel isolator.
Note: Power supply 10 - 16 A
