Heat transfer solutions

Heat exchangers

Heat load (kW)

Min

Max

Type Valve

actuation

Maximum dimensions

H

L

W

Piping connections DN

Steam

Condensate

Pump trap Steam trap

50 191 EHHSC1 EL and PN 1324

1625

825

DN50

DN40

DN25

191 299 EHHSC2 EL and PN 1344

1635 825

DN50

DN40 DN25

299 640 EHHSC3 EL and PN 1378

1625

825

DN50

DN40

DN25

640 753 EHHSC4 EL and PN 1381

1625

825

DN50

DN40

DN40

753 815 EHHSC5 EL and PN 1382

1625 825

DN50

DN50 DN40

- - EHHSC6 EL and PN 1460

1675 825

DN50

DN50 DN40

10.2.11

H

W

L

Pipework

All pipework is correctly sized for the application and is fabricated using modern welding techniques, approved welders and weld procedures.

Flanged products are used where possible for reliability and easy maintenance.

Electrics and pneumatics

All control equipment is pre-wired and piped ready for connection to the air supply and power source.

Electrical supply

Actuators

Support frame

Power supply

Supply fuse

Electric

Pneumatic

110-240 Vac / 50-60 Hz

5A (T)

24 Vac / 50-60Hz

4 to 6 bar g

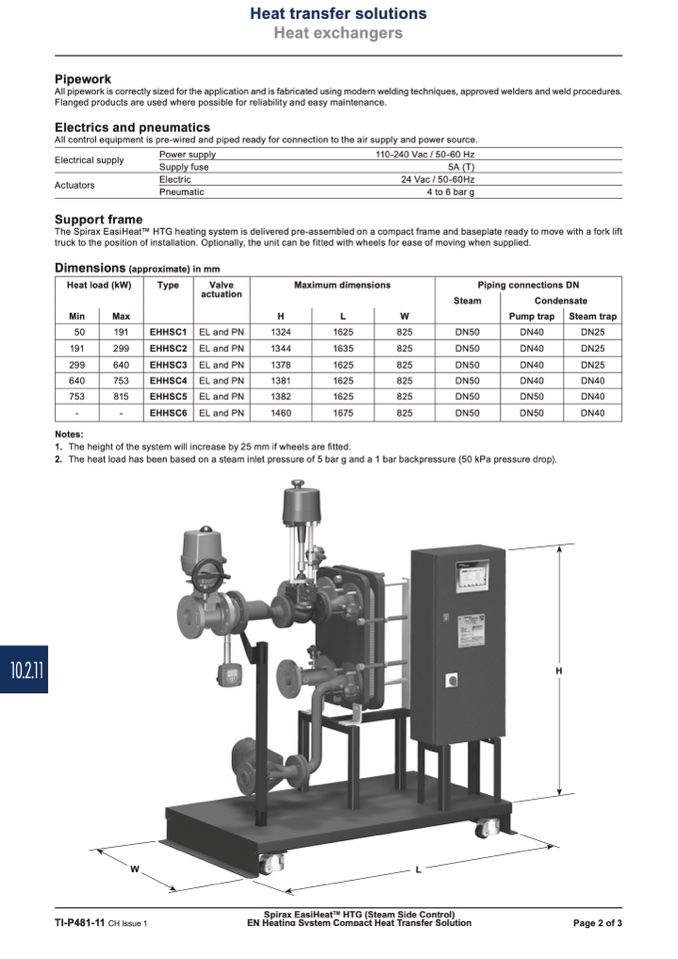

The Spirax EasiHeatTM HTG heating system is delivered pre-assembled on a compact frame and baseplate ready to move with a fork lift

truck to the position of installation. Optionally, the unit can be fitted with wheels for ease of moving when supplied.

Dimensions (approximate) in mm

Notes:

1. Theheightofthesystemwillincreaseby25mmifwheelsarefitted.

2. Theheatloadhasbeenbasedonasteaminletpressureof5barganda1barbackpressure(50kPapressuredrop).

Spirax EasiHeat

TM

HTG (Steam Side Control)

TI-P481-11 CH Issue 1

EN Heating System Compact Heat Transfer Solution

Page 2 of 3
