Heat transfer solutions

Heat exchangers

Spirax EasiHeat

TM

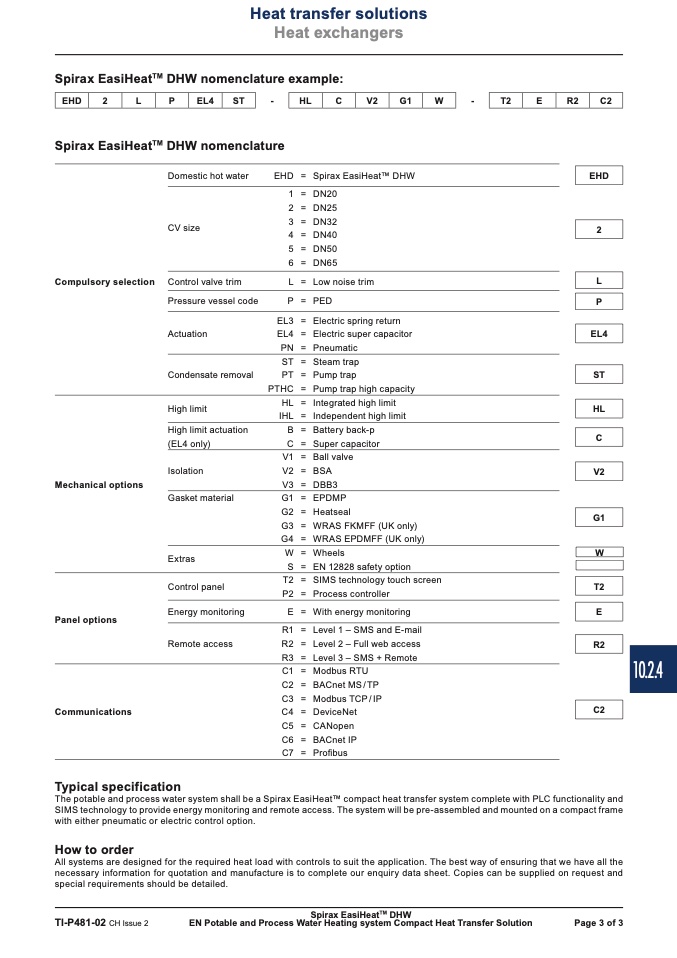

DHW nomenclature example:

-

-

Spirax EasiHeat

TM

DHW nomenclature

EHD 2 L P

EL4

ST

HL C V2 G1 W

T2

E R2 C2

L

P

Compulsory selection

Domestic hot water

CV size

Control valve trim

Pressure vessel code

EHD = Spirax EasiHeatTM DHW

1 = DN20

2 = DN25

3 = DN32

4 = DN40

5 = DN50

6 = DN65

L = Low noise trim

P = PED

EL3 = Electric spring return

Actuation

EL4 = Electric super capacitor

Mechanical options

Panel options

Communications

Condensate removal

High limit

High limit actuation

(EL4 only)

Isolation

Gasket material

Extras

Control panel

Energy monitoring

Remote access

PN = Pneumatic

ST = Steam trap

PT = Pump trap

PTHC = Pump trap high capacity

HL = Integrated high limit

IHL = Independent high limit

B = Battery back-p

C = Super capacitor

V1 = Ball valve

V2 = BSA

V3 = DBB3

G1 = EPDMP

G2 = Heatseal

G3 = WRAS FKMFF (UK only)

G4 = WRAS EPDMFF (UK only)

W = Wheels

W

S = EN 12828 safety option

T2 = SIMS technology touch screen

P2 = Process controller

E = With energy monitoring

R1 = Level 1 – SMS and E-mail

R2 = Level 2 – Full web access

R3 = Level 3 – SMS + Remote

C1 = Modbus RTU

C2 = BACnet MS / TP

C3 = Modbus TCP / IP

C4 = DeviceNet

C5 = CANopen

C6 = BACnet IP

C7 = Profibus

Typical specification

The potable and process water system shall be a Spirax EasiHeatTM compact heat transfer system complete with PLC functionality and

SIMS technology to provide energy monitoring and remote access. The system will be pre-assembled and mounted on a compact frame

with either pneumatic or electric control option.

How to order

All systems are designed for the required heat load with controls to suit the application. The best way of ensuring that we have all the

necessary information for quotation and manufacture is to complete our enquiry data sheet. Copies can be supplied on request and

special requirements should be detailed.

Spirax EasiHeat

TM

DHW

TI-P481-02 CH Issue 2

EN Potable and Process Water Heating system Compact Heat Transfer Solution

Page 3 of 3

EHD

2

EL4

ST

HL

C

V2

G1

T2

E

R2

C2

10.2.4
